SamtecTSW-106-16-G-SEmbases de raccordement et réceptacles PCB

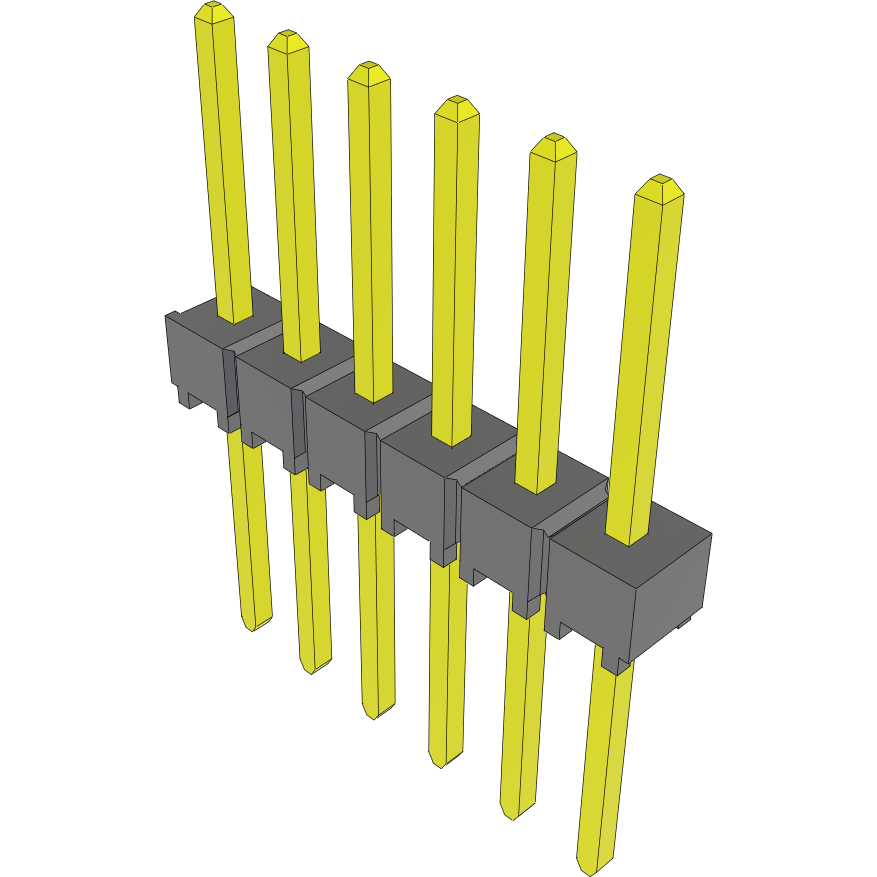

Reduce the possibility of accidentally shorting pins when using a printed circuit board with this unshrouded TSW-106-16-G-S header connector from Samtec. This HDR connector's 6 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 550 VAC. Its pitch is 2.54 mm. It has a header type gender. This is a 1-row connector. It has a straight body orientation. This device has a maximum current rating of 6.3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method. This product is 15.24 mm long, 10.67 mm tall and 2.54 mm deep. TSW-106-16-G-S is housed in black polyester.
