| Compliant | |
| EAR99 | |
| Active | |
| COMPONENTS | |
| Automotive | No |
| PPAP | No |
| Synchronous Step Down | |
| Adjustable | |
| 1200 | |
| Yes | |
| 1 | |
| 0.7 to 6 | |
| 0.8 | |
| 2.7 | |
| 10 | |
| 2.7 to 10 | |
| 12 | |
| 5.2mV/V(Typ) | |
| 0.0045%/mA(Typ) | |
| 93(Typ) | |
| -40 | |
| 85 | |
| Tube | |
| Installation | Surface Mount |
| Hauteur du paquet | 0.95(Max) |
| Largeur du paquet | 3.1(Max) |
| Longueur du paquet | 3.1(Max) |
| Carte électronique changée | 10 |
| Nom de lemballage standard | SO |
| Conditionnement du fournisseur | VSSOP |
| 10 | |
| Forme de sonde | Gull-wing |

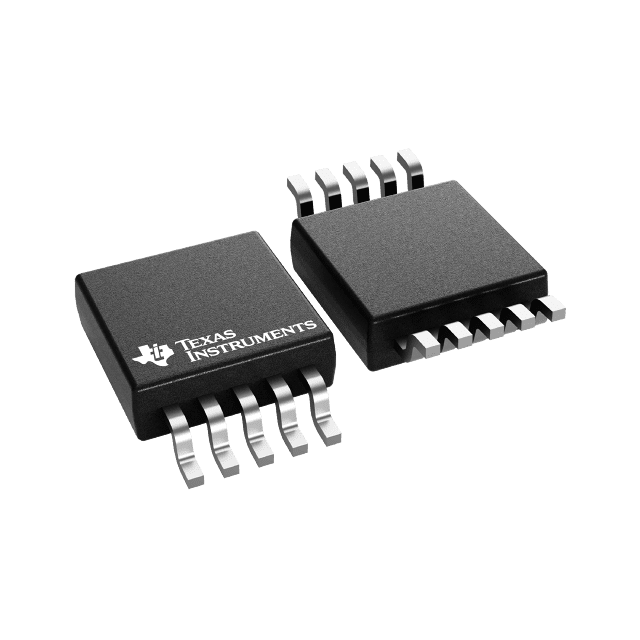

Adjust the voltage level of your devices with this step down TPS62051DGS DC to DC converter from Texas Instruments. This converter's single output can produce a current up to 0.8 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 2.7 V that does not exceed 10 V. With an adjustable output that has a voltage of 0.7 to 6 V, this is power management at its best. Using a load regulation of 0.0045%/mA(Typ) and line regulation of 5.2mV/V(Typ) is needed for a programmable DC power supply. This converter is 93(typ) % efficient. Its switching regulator has a frequency of 1000 kHz. In order to ensure parts aren't damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This converter has a minimum operating temperature of -40 °C and a maximum of 85 °C.
