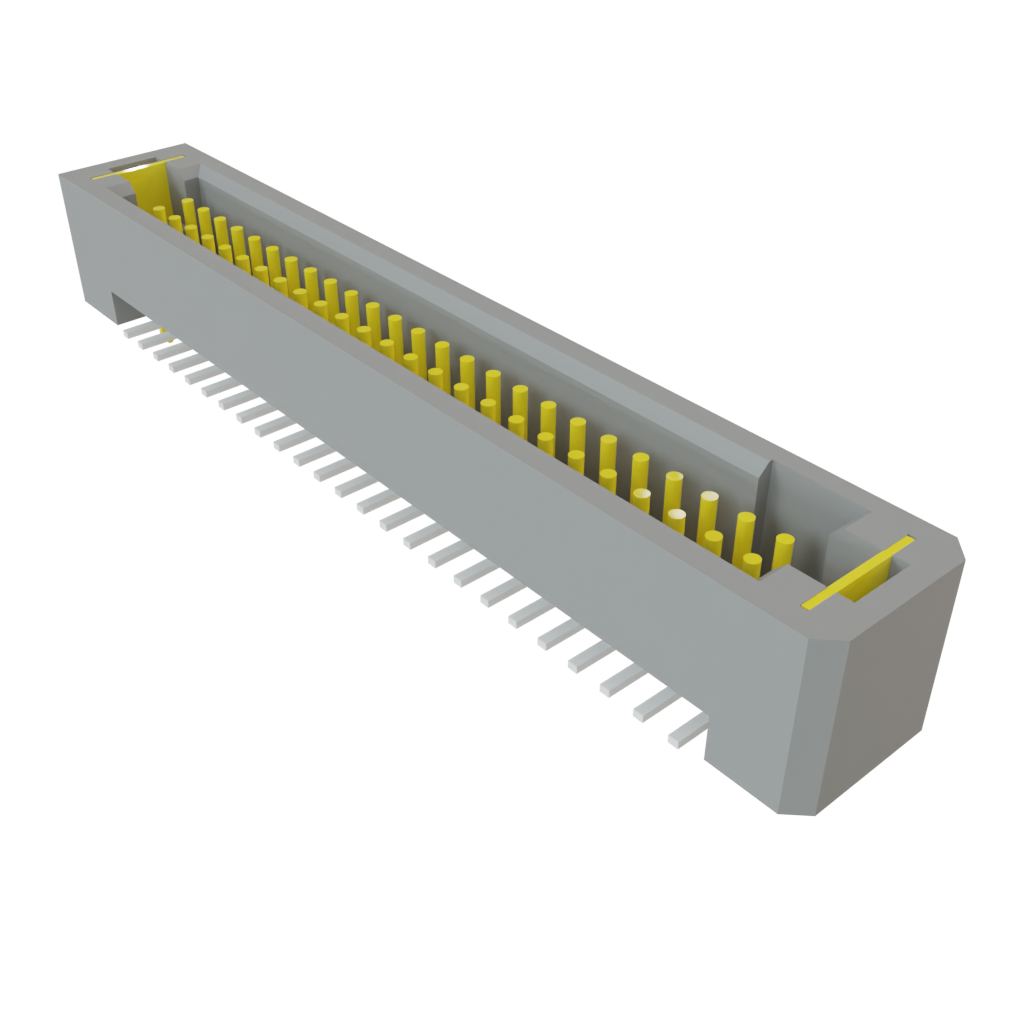

SamtecTFM-125-02-S-D-WTEmbases de raccordement et réceptacles PCB

This shrouded TFM-125-02-S-D-WT header connector from Samtec is used for jumper posts to support physical configuration options on printed circuit boards. This HDR connector's 50 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 250 VAC. Its pitch is 1.27 mm. This is a 2-row connector. It has a header type gender. It has a straight body orientation. This device has a maximum current rating of 3.2 A/contact. In order to ensure parts aren't damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. TFM-125-02-S-D-WT is housed in black liquid crystal polymer. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method. This product is 38.43 mm long, 5.72 mm tall and 5.72 mm deep.
