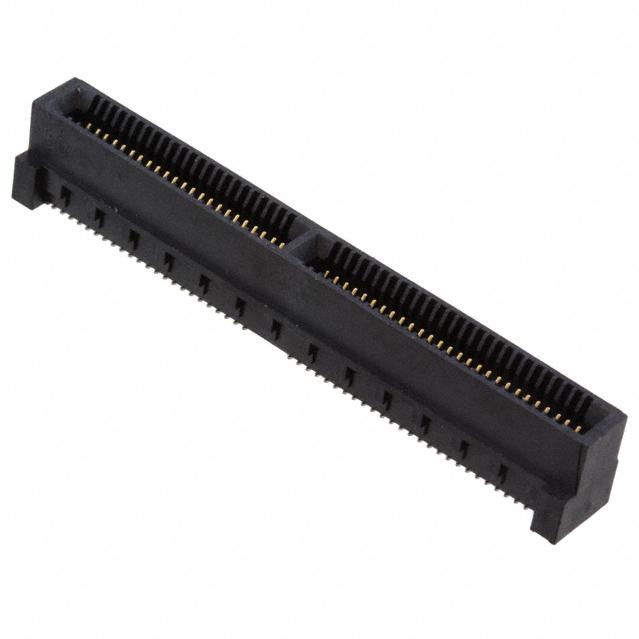

3MSPD08-100-RB-TRRaccordement de bord de carte

3M™ High-Speed Card-Edge Connector, SPD08

Product Details

• • Card-edge high-speed board-to-board connector
• • Supports flexible stacking height (16-40 mm) mezzanine applications using a riser card
• • High-density (0.8 mm pitch), two-row design conserves board space and simplifies trace routing
• • Robust contact design is tolerant of misalignment, provides a reliable connection and supports blind mate applications
• • Controlled impedance, crosstalk limiting contact design supports speeds up to 15 Gbps
• • Embedded ground plane within riser card limits row to row crosstalk and enhances signal integrity
• • Supports up to 25 Gbps wire to board applications using 3M™ Twin Axial Cable terminated to the card-edge
• • Flexible design supports 20-200 contact positions
• • Available with optional latches for robust mechanical stability
• • 0.5A current rating per contact
• • Typically used in datacom, enterprise servers, telecom, industrial, test and military applications
• • Supports XAUI, PCI express (Gen 1/2/3), SATA and other application speeds


• For more information refer to Customer Drawing 78-5100-2420-7

Simply connect the male side of an already manufactured printed circuit to 3M's SPD08-100-RB-TR smart card connector to allow for a cost saving connection. This SKT connector's 100 contacts that are made out of copper alloy and plated with gold over nickel. It has a maximum voltage rating of 50 VAC. It has a straight body orientation. This is a 2-row connector. It has a socket type gender. Its pitch is 0.8 mm. This device has a maximum current rating of 0.3 A. This product is 8 mm tall. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This card edge connector has an operating temperature of -55 to 125 °C. It uses the solder termination method. SPD08-100-RB-TR is housed in black liquid crystal polymer.
