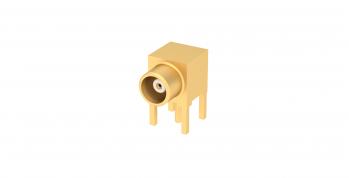

RadiallR113665000Raccordement FR
Conn MCX 0Hz to 6GHz 50Ohm Solder RA Thru-Hole RCP Gold Over Nickel Standard
| Compliant with Exemption | |
| EAR99 | |
| Active | |
| COMPONENTS | |
| SVHC | Yes |
| Taux de SVHC dépassant le seuil autorisé | Yes |
| Automotive | No |
| PPAP | No |
| MCX | |
| RCP | |
| Solder | |
| Right Angle | |
| F | |
| Gold Over Nickel | |
| 0 to 6G | |
| 0.07 | |
| 335V | |
| 50 | |
| 1000 | |
| 500 | |
| Standard | |
| -55 | |
| 155 | |
| Standard | |
| 9.5 | |
| 6 | |
| 6.5 | |
| Through Hole |
Protect your RF cable with this mcx R113665000 RF connector manufactured from Radiall, it will help get you an uninterrupted RF signal. This connector's body is plated in gold over nickel. It has a right angle body orientation. It has a receptacle type gender. It has an operating frequency of 0 to 6G Hz. It uses the solder termination method. This product is 9.5 mm long, 6.5 mm tall and 6 mm deep. This rf connector has an operating temperature of -55 to 155 °C.
