SamtecQTE-040-05-C-D-A-KEmbases de raccordement et réceptacles PCB

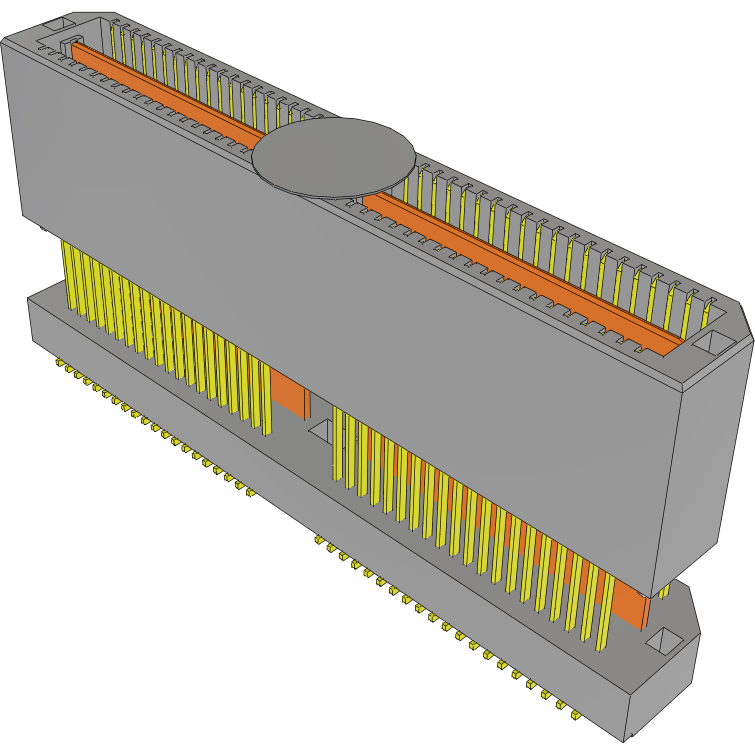

Mount this high speed micro plane QTE-040-05-C-D-A-K header connector from Samtec on a jumper post on your PCB to support physical configuration options. This HDR connector's 80 contacts that are made out of phosphor bronze and plated with electro-polished gold over nickel. This is a 2-row connector. It has a straight body orientation. It has a header type gender. It has a maximum voltage rating of 225 VAC. Its pitch is 0.8 mm. This device has a maximum current rating of (2/23) A/contact. QTE-040-05-C-D-A-K is housed in black liquid crystal polymer. This connector has an operating temperature of -55 to 125 °C. This product is 40 mm long, 18.26 mm tall and 7.11 mm deep. It uses the solder termination method.
