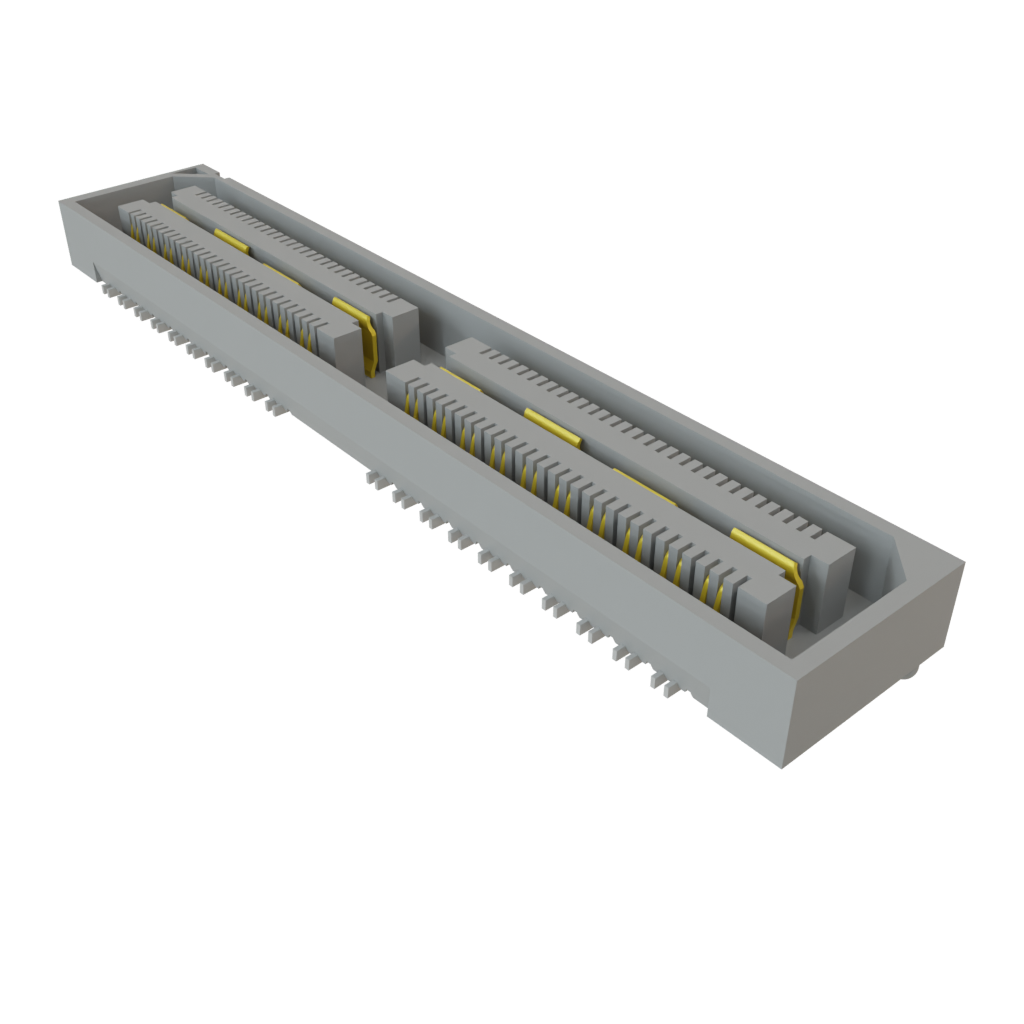

SamtecQSH-040-01-L-D-DP-AEmbases de raccordement et réceptacles PCB

Use this differential pair QSH-040-01-L-D-DP-A header connector from Samtec where IDC ribbon cables are used. This SKT connector's 80 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 2-row connector. Its pitch is 0.5 mm. It has a maximum voltage rating of 125 VAC. It has a socket type gender. It has a straight body orientation. This device has a maximum current rating of (2/25) A/contact. It uses the solder termination method. This connector has an operating temperature of -55 to 125 °C. QSH-040-01-L-D-DP-A is housed in black liquid crystal polymer. This product is 41.27 mm long, 3.25 mm tall and 7.49 mm deep.
