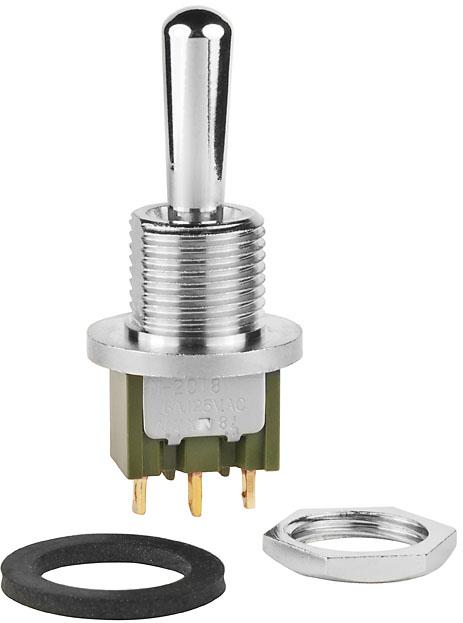

NKK SwitchesM2018B2B3A01Basculeur de commutateur
Switch Toggle (ON) OFF (ON) SPDT Large Bat Lever Solder Lug 6A 250VAC 30VDC 0.4VA Panel Mount with Threads
| Compliant with Exemption | |
| EAR99 | |
| Obsolete | |
| 8536.50.90.65 | |
| SVHC | Yes |
| Taux de SVHC dépassant le seuil autorisé | Yes |
| Automotive | No |
| PPAP | No |
| Large Bat Lever | |
| SPDT | |
| (ON) OFF (ON) | |
| Threaded | |
| 6@125VAC | |
| 0.4@28VAC 28VDC | |
| 1000VAC | |
| 1000 | |
| 20 | |
| 50000 | |
| 50000 | |
| Bright Chrome | |
| 17.5 | |
| 1 | |
| Panel Mount with Threads | |
| Solder Lug | |
| 3 | |
| 4.5 | |
| 4.7 | |
| O-Ring/Epoxy | |
| Panel/Terminals | |
| O-Ring/Epoxy | |
| IP67 | |
| Straight | |
| -30 | |
| 85 | |
| Miniature | |
| M12 x 1 | |
| 13 | |
| 12 | |
| 7.9 | |
| 9.4 | |
| 18 | |
| 18 | |
| 43.4 |
This compact M2018B2B3A01 toggle switch from NKK Switches makes it possible to turn on and off certain parts of your circuits. It has a SPDT configuration. This device has a maximum current rating of 6 A @ 125VAC. This toggle switch has a minimum operating temperature of -30 °C and a maximum of 85 °C. The M2018B2B3A01 toggle switch has a solder lug termination style. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 30 VDC. This product is 18 mm long, 43.4 mm tall and 18 mm deep.
