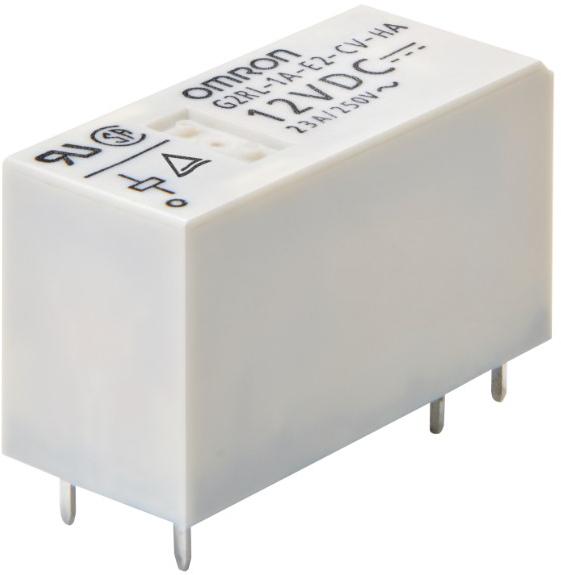

OmronG2RL-1A-E2-CV-HA DC24 | PCB Power RelayPower Relays

The new 1FormA (SPST-NO) relay is a footprint compatible extension of the existing G2RL lineup, with a higher switching current of 23A at an ambient operating temperature of 105°C maximum. The product additionally meets application needs with its low profile (H=16.7 mm), long life and low coil power consumption.

This product is a great alternative for use in a multitude of applications that previously relied on the discontinued G8P Relays for operation.

Features

• High Switching Capacity
  • 23A @ 250VAC Resistive Switching Capacity
  • 44% increase over the high-capacity G2RL's 16A rating
• High Ambient Operating Temperature
  • Class F Coil, standard
  • Widely used for home appliance and industrial up to 105°C
  • Also conforms to IEC/EN60335-1
• Long Electrical Service Life:
  • 100K operations minimum at the rated resistive load, 105°C (1 sec. ON / 9 sec. OFF)
• Sealability
  • Flux tight, with vented cover, allows for better heat dissipation

Applications

• Cooking HA (Cooking Top/MWO)
• White Goods (Fridge/Washing Machine)
• Industrial Inverter
• UPS, Power Supply
• Resistive Loads switching (Heater)
• Inductive Loads switching (Motor/Compressor)
• Inrush protection

Specifications

• Enclosure: Flux Protection
• Contact Form: SPST(1a)
• Power Consumption: 400mW
• Rated Load (Resistive Load): AC250V 23A
• Dielectric strength (coil・contacts): 5,000VAC, 50/60Hz for 1 min
• Dielectric strength (same polarity): 1,000VAC, 50/60Hz for 1 min
• E-life: 100K ops. 250VAC, 23A @105°C
• Ambient Temperature: -55°C to 105°C
