SamtecFTSH-105-01-FM-D-RAEmbases de raccordement et réceptacles PCB

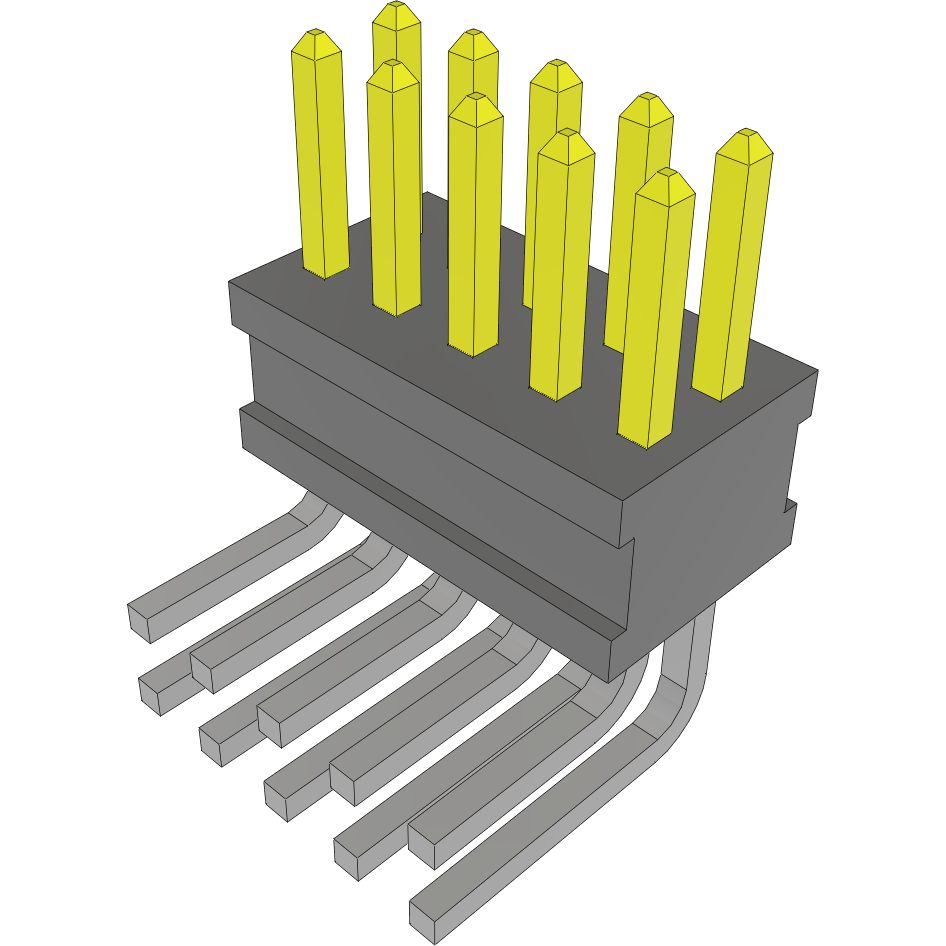

Support physical configuration options for jumper posts by mounting this unshrouded FTSH-105-01-FM-D-RA header connector from Samtec. This HDR connector's 10 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a right angle body orientation. This is a 2-row connector. Its pitch is 1.27 mm. It has a header type gender. This device has a maximum current rating of 1.75 A/contact. In order to ensure parts aren't damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It uses the solder termination method. This connector has an operating temperature of -55 to 125 °C. This product is 6.35 mm long, 3.43 mm tall and 8.1 mm deep. FTSH-105-01-FM-D-RA is housed in black liquid crystal polymer.
