OmronD2LS-21 | Ultra Subminiature Basic SwitchAction d’interrupteur à pression

Compact Surface-mounting switches ideal for applications requiring long durability and high force type models with long durability also available.

Compact size 8.6 × 4.8 × 3.0 mm (W × D × H) contributes to down-sizing of module. Has a clear click feeling. Products are packed with embossed tape for automatic mounting.

Features & Benefits

• Compact size & Surface mount
  • Can be used in similar applications as tactile switches
• Stable and clear click feel
  • Maintains high responsiveness and users can push with confidence
• Exceptional endurance
  • High reliability and quality

Applications

• Mice
• Gaming controllers
• Small devices
• Wall controls

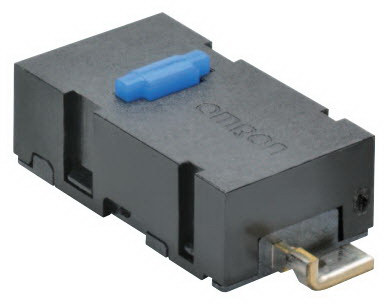

Appearance

This D2LS-21 snap-action switch from Omron can be actuated with very little physical force. This device has a maximum current rating of 0.001 A @ 6VDC. It has a SPST configuration. This snap action switch has a minimum operating temperature of -25 °C and a maximum of 85 °C. The D2LS-21 snap action switch has a gull wing termination style. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. The maximum DC voltage rating is 6 VDC. This product is 11.2 mm long, 3.5 mm tall and 4.8 mm deep.
