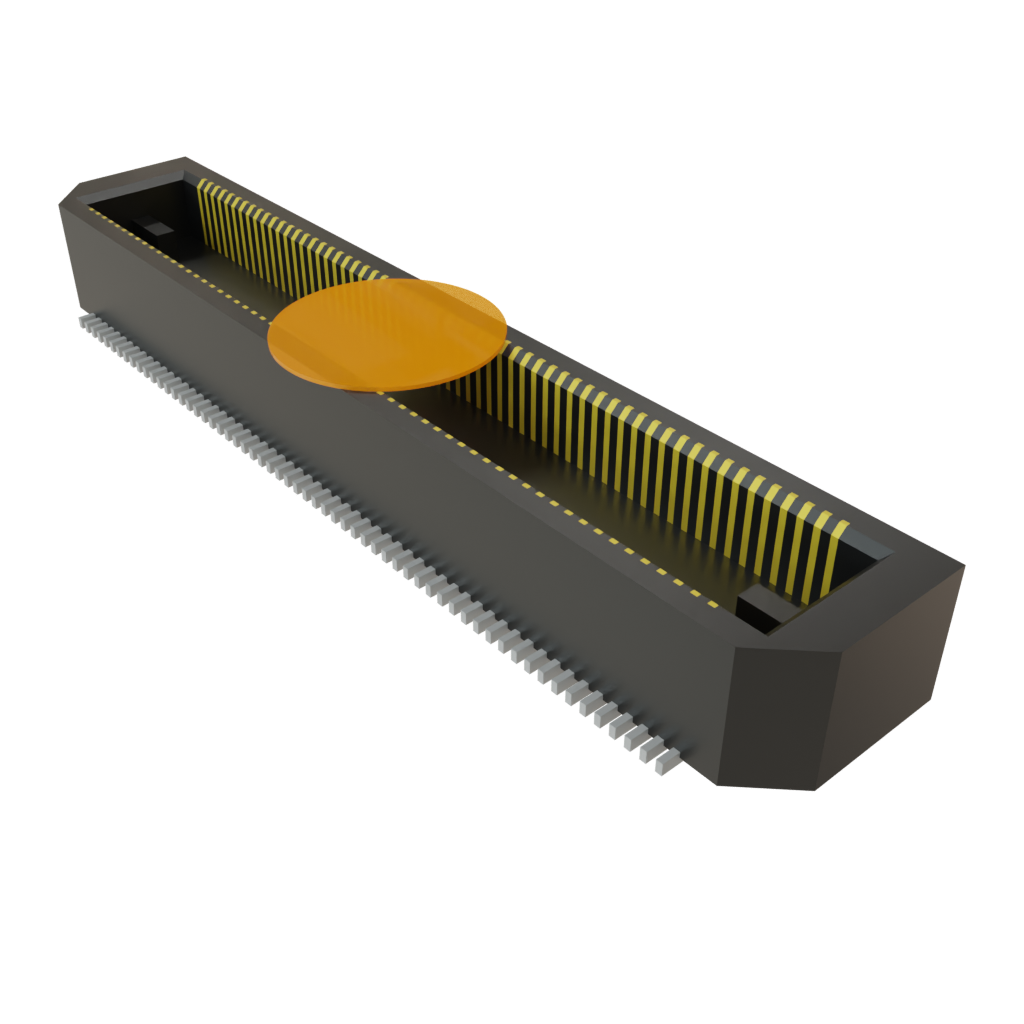

SamtecBTH-060-01-L-D-A-KEmbases de raccordement et réceptacles PCB

This micro terminal BTH-060-01-L-D-A-K header connector from Samtec reduces the possibility of accidentally shorting pins when a board is being used. This HDR connector's 120 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 0.5 mm. It has a header type gender. It has a straight body orientation. It has a maximum voltage rating of 275 VAC. This is a 2-row connector. This device has a maximum current rating of 2 A/contact. This product is 35 mm long, 4.27 mm tall and 7.11 mm deep. It uses the solder termination method. BTH-060-01-L-D-A-K is housed in liquid crystal polymer. This connector has an operating temperature of -55 to 125 °C.
