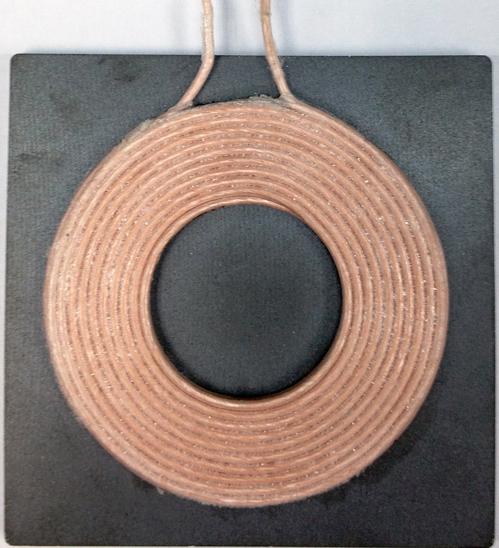

AbraconAWCCA-53N53H50-C02-BWireless Charging Coils
Wireless Charging Coil Receiver/Transmitter 6.3uH 10% 100KHz 11A 0.019OhmDCR 66Q-Factor Through Hole
| Compliant | |
| EAR99 | |
| Obsolete | |
| 8504.50.40.00 | |
| Automotive | Yes |
| PPAP | Unknown |
| Receiver|Transmitter | |
| 6.3u | |
| 10 | |
| 0.019(Typ) | |
| 100K | |
| 11(Typ) | |
| 40 | |
| 6.4M | |
| -25 | |
| 85 | |
| Through Hole | |
| 56 | |
| 54 | |
| 3.8 |
This wireless charging transmitting or receiving coil AWCCA-53N53H50-C02-B leaded inductor from Abracon Corporation is constructed on a core with concentric leads on opposite ends of the core. This leaded inductor has an operating temperature range of -25 °C to 85 °C. It has a tolerance of 10%. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 6.4M Hz. This device utilizes wirewound technology. This product is 54 mm long, 54 mm tall and 5.5 mm deep. This leaded inductor has a maximum DC current of 11(Typ) A with a maximum resistance of 19m(Typ) Ohm. It has an inductance of 6.3u H.
