STMicroelectronicsANT1-M24LR16ECartes et kits de développement RF/sans fil
M24LR16E-R NFC/RFID Tag and Transponder Reference Design Board
| Compliant | |
| EAR99 | |
| Unconfirmed | |
| 8473.30.11.80 | |
| Automotive | No |
| PPAP | No |
| Reference Design Board | |
| M24LR16E-R | |
| NFC/RFID Tag and Transponder | |
| 13.56 | |
| I2C |
Description du kit de développement

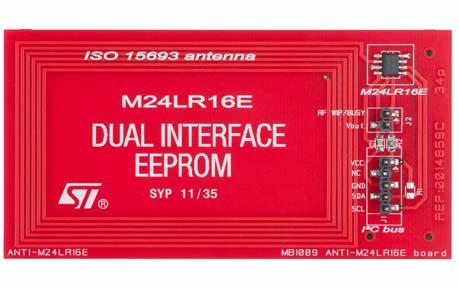

The ANT1-M24LR16E antenna reference board is a ready-to-use PCB that features an M24LR16E-R Dual Interface EEPROM IC connected to a 45 mm x 75 mm 13.56 MHz etched RF antenna on one side, and to an I2C bus on the other side.
The ANT1-M24LR16E antenna allows system designers to evaluate the M24LR16E-R performance and capabilities, and to get started with their design.
To demonstrate the energy harvesting function, the ANT1-M24LR16E can be used in conjunction with ST DEMO-CR95HF-A demonstration board.
The application can be powered directly from the M24LR16E-R VOUTpin.
