| Compliant | |
| EAR99 | |
| Active | |
| 8542.33.00.01 | |
| Automotive | Yes |
| PPAP | Yes |
| Precision Amplifier | |
| Precision Amplifier | |
| 2 | |
| 1(Typ)@5V | |
| 5 | |
| 16 | |
| ±2.5 | |
| ±3|±5 | |
| ±8 | |
| 0.03@5V@-40C to 125C | |
| 0.0015@5V | |
| 0.1@5V@-40C to 125C | |
| 5(Typ)@5V | |
| 400(Max) | |
| Single|Dual | |
| 0.17@5V | |
| 110@5V | |
| 90 | |
| 65 | |
| 45 | |
| <50 | |
| 0.6 | |
| Yes | |
| -40 | |
| 125 | |
| Automotive | |
| Tape and Reel | |
| Installation | Surface Mount |
| Hauteur du paquet | 0.75(Max) |
| Largeur du paquet | 3.1(Max) |
| Longueur du paquet | 3.1(Max) |
| Carte électronique changée | 12 |
| Nom de lemballage standard | SON |
| Conditionnement du fournisseur | WSON EP |
| 12 | |
| Forme de sonde | No Lead |

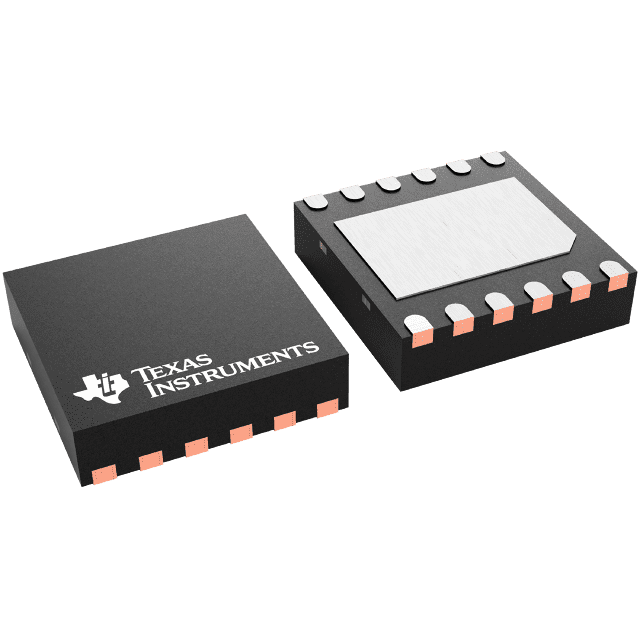

The configuration of this general purpose amplifier ALM2402QDRRRQ1 OP amp from Texas Instruments allows it to take on a variety of different behaviors and characteristics with external components such as resistors, capacitors and inductors. Its typical dual supply voltage is ±3|±5 V, with a minimum of ±2.5 V and maximum of ±8 V. This op amp has a temperature range of -40 °C to 125 °C. It has 2 channels per chip. This device uses one or two power supplies.
