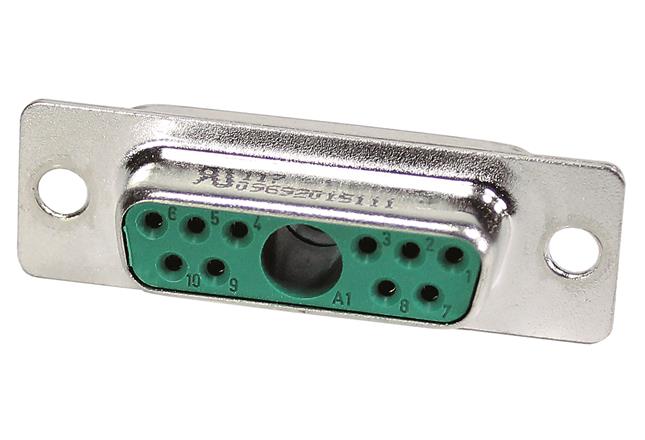

HARTING09692015111Raccordement D ultra-miniaturisé
Conn D-Sub F 10Signal/1Cavity POS Solder Cup ST Panel Mount 10 Terminal 1 Port
| Compliant with Exemption | |
| EAR99 | |
| Active | |
| SVHC | Yes |
| Taux de SVHC dépassant le seuil autorisé | Yes |
| Automotive | No |
| PPAP | No |
| D-Sub | |
| RCP | |
| 10Signal/1Cavity | |
| 10 | |
| 1 | |
| Solder Cup | |
| Straight | |
| F | |
| 5 | |
| 3 | |
| -55 | |
| 125 | |
| 500 | |
| Metal | |
| Tin | |
| 39.1 | |
| 14.5 | |
| 12.5 | |
| Panel Mount | |
| Copper Alloy |
The 09692015111 DVI connector from Harting is perfect for communication between serial connections in your system. This female connector's 10signal / 1cavity contacts that are made out of copper alloy. This connector has a single port. It has a straight body orientation. This device has a maximum current rating of 5 A. 09692015111 is housed in polyester. Its 10 terminals use the solder cup termination method. This DVI connector has an operating temperature of -55 to 125 °C. This product is 39.1 mm long, 12.5 mm tall and 14.5 mm deep.
