UCC28019AEVM, Evaluation Board for the UCC28019, 350W PFC Converter

Reference Design using part UCC28019AD by Texas Instruments

Enlarge
Image 1 / 1

Manufacturer

Texas Instruments
  • Application Category
    Power Supplies
  • Product Type
    AC to DC Single Output Power Supplies
Buy

Associated Documents

For End Products

  • Consumer Electronics
  • Desktops and Servers
  • Telecom Power Supply

Description

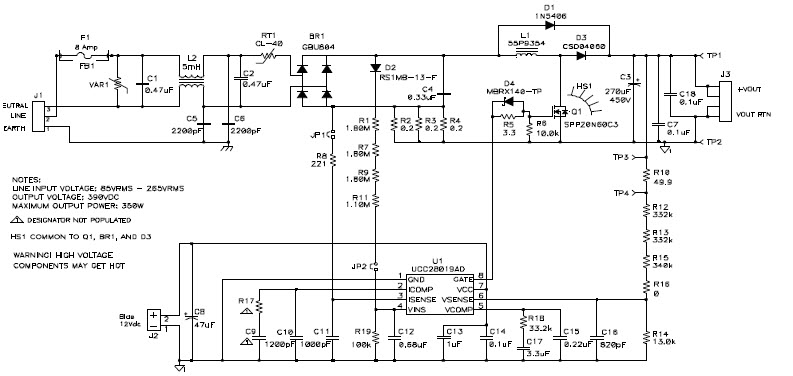

  • UCC28019AEVM, Evaluation Board for the UCC28019, 350W PFC Converter. The UCC28019A evaluation module (EVM) is a 350W off-line Power Factor Correction (PFC) boost converter providing a 390V regulated output at 0.9A of load current. The PFC converter accommodates an input voltage range of 85VAC to 265VAC and uses average current mode control at a fixed frequency of 65kHz. The UCC28019A incorporates a wide range of protection features to ensure safe system operation

Key Features

  • Conversion Type
    AC to DC
  • Input Voltage
    85 to 265 (AC) V
  • Output Voltage
    380 to 402 V
  • Output Current
    0.9 A
  • Output Power
    350 W
  • Efficiency
    97.7 %
  • Topology
    Boost- PFC

Featured Parts (2)

Featured Parts
Part Number Manufacturer Type Description
UCC28019ADR Texas Instruments Power Factor Correction - PFC Power Factor Correction Controller 68.3kHz 8-Pin SOIC T/R Buy
UCC28019AD Texas Instruments Power Factor Correction - PFC Power Factor Correction Controller 68.3kHz 8-Pin SOIC Tube Buy
