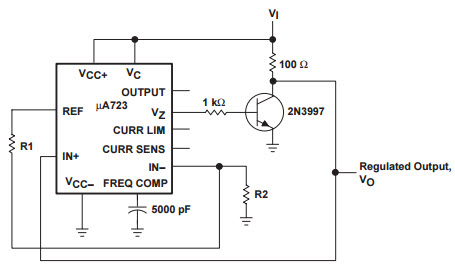

Typical Application Circuit for UA723 Shunt Regulator

Reference Design using part UA723 by Texas Instruments

Enlarge
Image 1 / 1

Manufacturer

Texas Instruments
  • Application Category
    Power Supplies
  • Product Type
    DC to DC Single Output Power Supplies

For End Products

  • Power Supplies

Description

  • Typical Application Circuit for UA723 Shunt Regulator

Key Features

  • Conversion Type
    DC to DC
  • Topology
    LDO

Featured Parts (8)

Featured Parts
Part Number Manufacturer Type Description
UA723CN Texas Instruments Linear Regulators Standard Regulator Pos 2V to 37V 0.15A 14-Pin PDIP Tube Buy
UA723CDE4 Texas Instruments Linear Regulators Standard Regulator Pos 2V to 37V 0.15A 14-Pin SOIC Tube Buy
UA723CDR Texas Instruments Linear Regulators Standard Regulator Pos 2V to 37V 0.15A 14-Pin SOIC T/R Buy
UA723CNE4 Texas Instruments Linear Regulators Standard Regulator Pos 2V to 37V 0.15A 14-Pin PDIP Tube Buy
UA723CD Texas Instruments Linear Regulators LDO Regulator Pos 2V to 37V 0.15A 14-Pin SOIC Tube Buy
UA723CDG4 Texas Instruments Linear Regulators Standard Regulator Pos 2V to 37V 0.15A 14-Pin SOIC Tube Buy
UA723CNSR Texas Instruments Linear Regulators Standard Regulator Pos 2V to 37V 0.15A 14-Pin SOP T/R Buy
UA723CDRE4 Texas Instruments Linear Regulators Standard Regulator Pos 2V to 37V 0.15A 14-Pin SOIC T/R Buy
