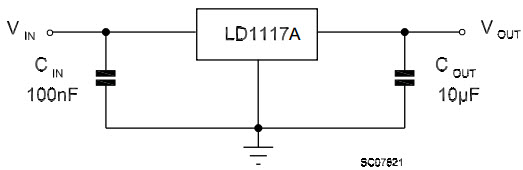

Typical Application Circuit for LD1117A Low drop fixed and adjustable positive voltage regulators

Reference Design using part LD1117A by STMicroelectronics

Enlarge
Image 1 / 1

Manufacturer

STMicroelectronics
  • Application Category
    Power Supplies
  • Product Type
    DC to DC Single Output Power Supplies

For End Products

  • Power Supplies

Description

  • Typical Application Circuit for LD1117A Low drop fixed and adjustable positive voltage regulators

Key Features

  • Conversion Type
    DC to DC
  • Topology
    LDO

Featured Parts (8)

Featured Parts
Part Number Manufacturer Type Description
LD1117AS18TR STMicroelectronics Linear Regulators LDO Regulator Pos 1.8V 1A 4-Pin(3+Tab) SOT-223 T/R Buy
LD1117ADT18TR STMicroelectronics Linear Regulators LDO Regulator Pos 1.8V 1A 3-Pin(2+Tab) DPAK T/R Buy
LD1117AS12TR STMicroelectronics Linear Regulators LDO Regulator Pos 1.2V 1.2A 4-Pin(3+Tab) SOT-223 T/R Buy
LD1117ADT12TR STMicroelectronics Linear Regulators LDO Regulator Pos 1.2V 1.2A 3-Pin(2+Tab) DPAK T/R Buy
LD1117ADT-TR STMicroelectronics Linear Regulators LDO Regulator Pos 1.25V to 15V 1.2A 3-Pin(2+Tab) DPAK T/R Buy
LD1117AS33TR STMicroelectronics Linear Regulators LDO Regulator Pos 3.3V 1.2A 4-Pin(3+Tab) SOT-223 T/R Buy
LD1117ADT33TR STMicroelectronics Linear Regulators LDO Regulator Pos 3.3V 1.2A 3-Pin(2+Tab) DPAK T/R Buy
LD1117ASTR STMicroelectronics Linear Regulators LDO Regulator Pos 1.25V to 15V 1.2A 4-Pin(3+Tab) SOT-223 T/R Buy
