PMP7330, Positive 12V to -12V @ 0.1A Buck-Boost Converter Reference Design
Reference Design using part TPS5401DGQ by Texas Instruments
1 / 1
Associated Documents
For End Products
- Consumer Electronics
- Industrial
- Medical and Healthcare
Description

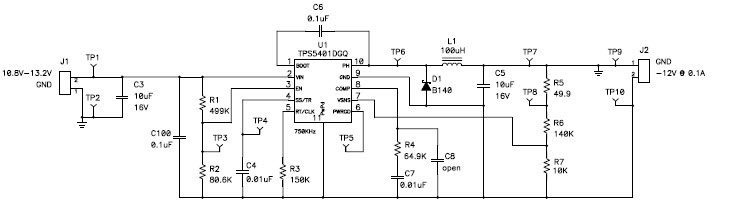

- Reference design uses the TPS5401 current mode sync buck controller to generate a -12V/0.1A output from a +12V input voltage. This circuit operates at 750KHz, requires minimal components and achieves excellent efficiency
Key Features
-
Conversion TypeDC to DC
-
Input Voltage8 to 13.2 V
-
Output Voltage-12 V
-
Output Current0.1 A
-
Output Power1.2 W
-
TopologyBuck Boost- Inverting
Featured Parts (3)
| Part Number | Manufacturer | Type | Description | |||
|---|---|---|---|---|---|---|
|
TPS5401DGQ | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 3.5V to 42V Synchronous Step Down Single-Out 0.8V to 39V 0.5A 10-Pin HVSSOP EP Tube | Buy | |
|
|
TPS5401DGQT | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 3.5V to 42V Synchronous Step Down Single-Out 0.8V to 39V 0.5A 10-Pin HVSSOP EP T/R | Buy | |
|
|
TPS5401DGQR | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 3.5V to 42V Synchronous Step Down Single-Out 0.8V to 39V 0.5A 10-Pin HVSSOP EP T/R | Buy | |
