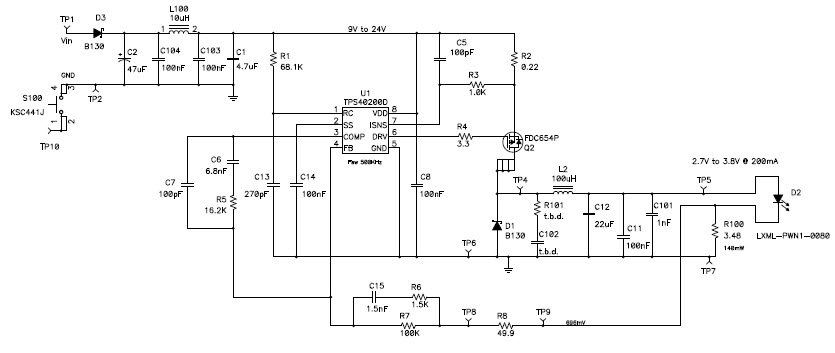

PMP4560, 200mA Single LED Driver Reference Design

Reference Design using part TPS40200D by Texas Instruments

Enlarge
Image 1 / 1

Manufacturer

Texas Instruments
  • Application Category
    Power Supplies
  • Product Type
    DC to DC Single Output Power Supplies

Associated Documents

For End Products

  • LED Lighting

Description

  • PMP4560, 200mA Single LED Driver Reference Design. Lowest cost 200mA buck LED driver to supply a single LED out of 9V to 24V source

Key Features

  • Conversion Type
    DC to DC
  • Input Voltage
    9 to 25 V
  • Output Voltage
    3 V
  • Output Current
    0.2 A
  • Output Power
    0.6 W
  • Topology
    Buck- Non Sync
