PMP4357.1, 20V-75V input, 15V0.3A and 14.5V0.3A output dual-rail Buck converter solution

Reference Design using part LM5006MM by Texas Instruments

Enlarge
Image 1 / 1

Manufacturer

Texas Instruments
  • Application Category
    Power Supplies
  • Product Type
    DC to DC Single Output Power Supplies

Associated Documents

For End Products

  • Communications and Telecom

Description

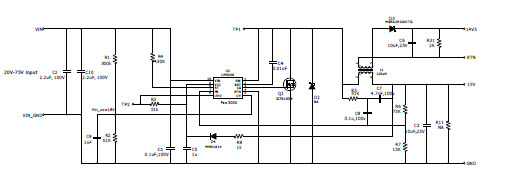

  • PMP4357.1, 20V-75V input, 15V0.3A and 14.5V0.3A output dual-rail Buck converter solution. Design demonstrates simple sync-buck solution which covers wide input range from 20V to 75V. The output voltage are 15V0.3A(regulated) and 14.5V0.3A(post regulated)

Key Features

  • Conversion Type
    DC to DC
  • Input Voltage
    20 to 75 V
  • Output Voltage
    15 V
  • Output Current
    0.3 A
  • Output Power
    4.5 W
  • Topology
    Buck- Synchronous

Featured Parts (4)

Featured Parts
Part Number Manufacturer Type Description
LM5006MM/NOPB Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 6V to 75V Step Down Single-Out 2.5V to 75V 0.65A 10-Pin VSSOP T/R Buy
LM5006MMX/NOPB Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 6V to 75V Step Down Single-Out 2.5V to 75V 0.65A 10-Pin VSSOP T/R Buy
LM5006MM/NOPB Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 6V to 75V Step Down Single-Out 2.5V to 75V 0.65A 10-Pin VSSOP T/R Buy
LM5006MMX/NOPB Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 6V to 75V Step Down Single-Out 2.5V to 75V 0.65A 10-Pin VSSOP T/R Buy
