11.6 to 12.4V DC to DC Single Output Power Supply for Portable

Reference Design using part TPS61085PW by Texas Instruments

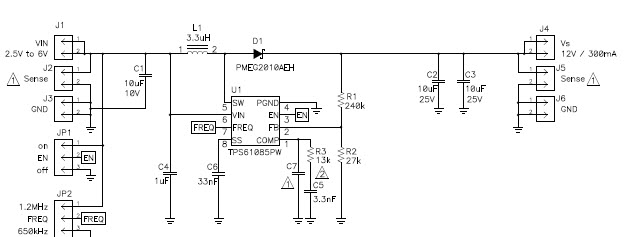

Enlarge
Image 1 / 1

Manufacturer

Texas Instruments
  • Application Category
    Power Supplies
  • Product Type
    DC to DC Single Output Power Supplies

Associated Documents

For End Products

  • Digital Still Camera (DSC)
  • DSL Modem
  • GPS
  • LCD TFT Display
  • PCMCIA Card
  • Portable

Description

  • 650kHz/1.2MHz, 18.5 V step-up DC-DC converter TPS61085 with a switch current of 2A min

Key Features

  • Conversion Type
    DC to DC
  • Input Voltage
    2.3 to 6 V
  • Output Voltage
    11.6 to 12.4 V
  • Output Current
    0.3 A
  • Topology
    Boost

Featured Parts (3)

Featured Parts
Part Number Manufacturer Type Description
TPS61085PW Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 2.3V to 6V Step Up Single-Out 2.8V to 18.5V 0.6A 8-Pin TSSOP Tube Buy
TPS61085PWR Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 2.3V to 6V Step Up Single-Out 2.8V to 18.5V 8-Pin TSSOP T/R Buy
TPS61085PWG4 Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 2.3V to 6V Step Up Single-Out 2.8V to 18.5V 0.6A 8-Pin TSSOP Tube Buy
