USB Switch for Notebook
使用 Microchip Technology 的 MIC2545A-2 的参考设计
1 / 1
依据最终产品
- Computer Cards
- Laptop
- Notebook
- Personal Digital Assistant
说明

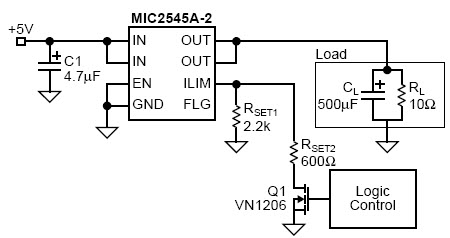

- Logic control can be used to switch the current limit from 100mA to 500mA. The difference between the two circuits is that the MIC2778 allows the circuit to switch automatically
Featured Parts (5)
| 零件编号 | 供应商 | 类别 | 说明 | |||
|---|---|---|---|---|---|---|
|
MIC2545A-2YN | Microchip Technology | USB Power Switches | USB Power Switch Single 5.5V 0.5A to 3A 8-Pin PDIP Tube | 买入 | |
|
MIC2545A-2YTS-TR | Microchip Technology | USB Power Switches | USB Power Switch Single 5.5V 0.5A to 3A 14-Pin TSSOP T/R | 买入 | |
|
|
MIC2545A-2YTS | Microchip Technology | USB Power Switches | USB Power Switch Single 5.5V 0.5A to 3A 14-Pin TSSOP Tube | 买入 | |
|
MIC2545A-2YM | Microchip Technology | USB Power Switches | USB Power Switch Single 5.5V 0.5A to 3A 8-Pin SOIC N Tube | 买入 | |
|
|
MIC2545A-2YM-TR | Microchip Technology | USB Power Switches | USB Power Switch Single 5.5V 0.5A to 3A 8-Pin SOIC N T/R | 买入 | |
