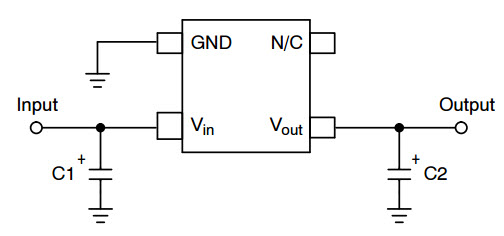

Typical Application for NCV553 80 mA CMOS Low Iq NOCAP Voltage Regulator

使用 onsemi 的 NCV553 的参考设计

放大
Image 1 / 1

供应商

onsemi
  • 应用类别
    电源
  • 产品类别
    直流到直流单输出电源

依据最终产品

  • Battery-Powered Consumer Products
  • Camcorder
  • Cameras
  • Handheld Instruments

说明

  • Typical Application for NCV553 80 mA CMOS Low Iq NOCAP Voltage Regulator. This series of fixed output NOCAP linear regulators are designed for handheld communication equipment and portable battery powered applications which require low quiescent

主要特色

  • Conversion Type
    DC to DC
  • Topology
    LDO

Featured Parts (1)

Featured Parts
零件编号 供应商 类别 说明
NCV553SQ30T1G onsemi Linear Regulators LDO Regulator Pos 3V 0.18A Automotive AEC-Q100 4-Pin(3+Tab) SC-82AB T/R 买入
