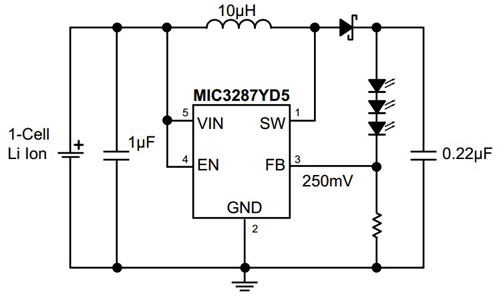

Typical Application for MIC3287: 1.2MHz PWM White LED Driver with OVP in 2mm x 2mm MLF and Thin SOT-23

使用 Microchip Technology 的 MIC3287 的参考设计

放大
Image 1 / 1

供应商

Microchip Technology
  • 应用类别
    照明
  • 产品类别
    白光发光二极管驱动器

依据最终产品

  • Lighting

说明

  • Typical Application for MIC3287: 1.2MHz PWM White LED Driver with OVP in 2mm x 2mm MLF and Thin SOT-23. The MIC3287 is a 1.2MHz pulse-width modulated (PWM) step-up switching regulator that is optimized for constant current white LED driving applications. With a maximum output voltage of 24V and a switch current of over 350mA, the MIC3287 drives a string of up to four white LEDs in series, ensuring uniform brightness and eliminating several ballast resistors
