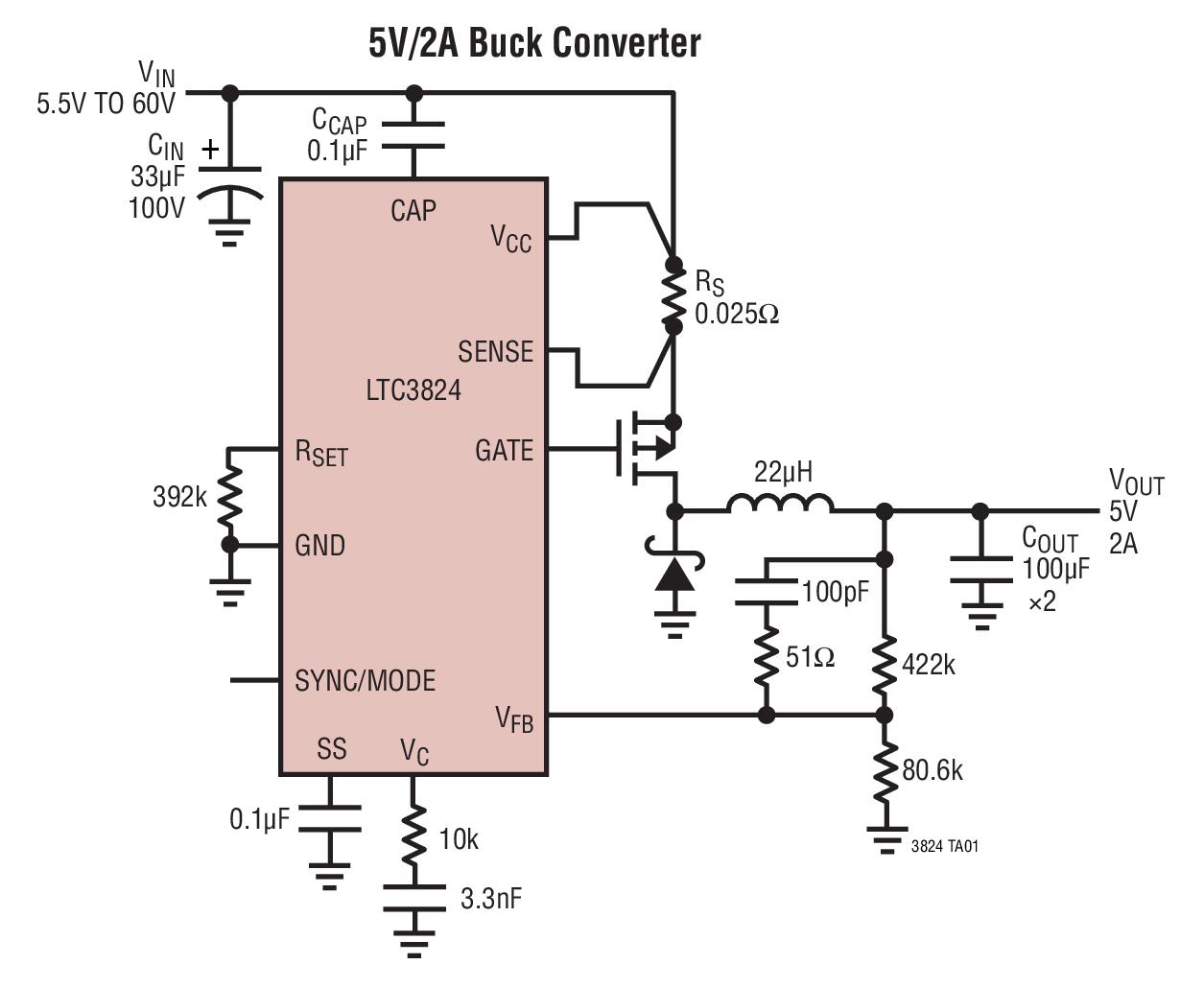

Typical Application for LTC3824 - High Voltage Step-Down Controller With 40 uA Quiescent Current
使用 Analog Devices 的 LTC3824 的参考设计
1 / 1
依据最终产品
- Automotive Power Supply
- Distributed Power System
- Industrial Power Supply
- Telecom Power Supply
说明
- Typical Application for the LTC3824 is a step-down DC/DC controller designed to drive an external P-channel MOSFET. With a wide input range of 4V to 60V and a high voltage gate driver, the LTC3824 is suitable for many industrial and automotive high power applications
主要特色
-
Conversion TypeDC to DC
-
TopologyBuck
Featured Parts (5)
| 零件编号 | 供应商 | 类别 | 说明 | |||
|---|---|---|---|---|---|---|
|
LTC3824EMSE#TR | Analog Devices | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Down 230kHz 10-Pin MSOP EP T/R | 买入 | |
|
|
LTC3824EMSE#TRPBF | Analog Devices | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Down 230kHz 10-Pin MSOP EP T/R | 买入 | |
|
|
LTC3824EMSE | Analog Devices | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Down 230kHz 10-Pin MSOP EP | 买入 | |
|
|
LTC3824IMSE#TRPBF | Analog Devices | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Down 230kHz 10-Pin MSOP EP T/R | 买入 | |
|
|
LTC3824HMSE#TRPBF | Analog Devices | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Down 240kHz 10-Pin MSOP EP T/R | 买入 | |
