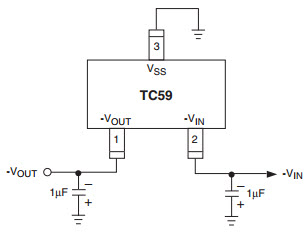

Typical Application Diagram for TC59 Low Dropout, Negative Output Voltage Regulator

使用 Microchip Technology 的 TC59 的参考设计

放大
Image 1 / 1

供应商

Microchip Technology
  • 应用类别
    电源
  • 产品类别
    直流到直流单输出电源

依据最终产品

  • Battery Powered Systems
  • Cameras
  • Cellular Phone
  • Palmtops

说明

  • Typical Application Diagram for TC59 Low Dropout, Negative Output Voltage Regulator. The TC59 is a low dropout, negative output voltage regulator designed specifically for battery-operated systems. Its full CMOS construction eliminates the wasted ground current typical of bipolar LDOs

主要特色

  • Conversion Type
    DC to DC
  • Topology
    LDO

Featured Parts (2)

Featured Parts
零件编号 供应商 类别 说明
TC593002ECBTR Microchip Technology Linear Regulators LDO Regulator Neg -3V 0.2A 3-Pin SOT-23A T/R 买入
TC595002ECBTR Microchip Technology Linear Regulators LDO Regulator Neg -5V 0.1A 3-Pin SOT-23A T/R 买入
