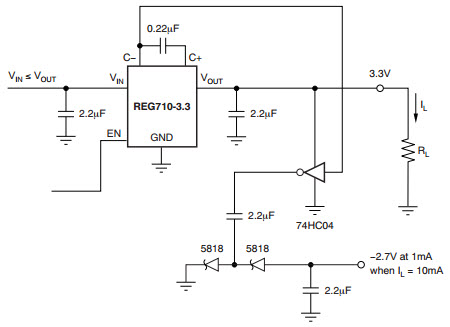

Typical Application Circuit for REG710 60mA Switched-Cap Buck/Boost Converter with Negative Bias Supply

使用 Texas Instruments 的 REG710 的参考设计

放大
Image 1 / 1

供应商

Texas Instruments
  • 应用类别
    电源
  • 产品类别
    直流到直流单输出电源

依据最终产品

  • Power Supplies

说明

  • Typical Application Circuit for REG710 60mA Switched-Cap Buck/Boost Converter with Negative Bias Supply

主要特色

  • Conversion Type
    DC to DC
  • Topology
    Buck Boost

Featured Parts (40)

Featured Parts
零件编号 供应商 类别 说明
REG710NA-3.3/250 Texas Instruments Charge Pump Charge Pump STPUP/STPDN 3.3V 30mA 6-Pin SOT-23 T/R 买入
REG710NA-3/3KG4 Texas Instruments Charge Pump Charge Pump STPUP/STPDN 3V 30mA 6-Pin SOT-23 T/R 买入
REG710NA-2.7/250 Texas Instruments Charge Pump Charge Pump STPUP/STPDN 2.7V 30mA 6-Pin SOT-23 T/R 买入
REG710NA-2.5/250G4 Texas Instruments Charge Pump Charge Pump STPUP/STPDN 2.5V 30mA 6-Pin SOT-23 T/R 买入
REG710NA-5/3KG4 Texas Instruments Charge Pump Charge Pump STPUP/STPDN 5V 30mA 6-Pin SOT-23 T/R 买入
REG710NA-3.3/250G4 Texas Instruments Charge Pump Charge Pump STPUP/STPDN 3.3V 30mA 6-Pin SOT-23 T/R 买入
REG710NA-3/3K Texas Instruments Charge Pump Charge Pump STPUP/STPDN 3V 30mA 6-Pin SOT-23 T/R 买入
REG710NA-3/3K Texas Instruments Charge Pump Charge Pump STPUP/STPDN 3V 30mA 6-Pin SOT-23 T/R 买入
REG71055DDCR Texas Instruments Charge Pump Charge Pump STPUP/STPDN 5.5V 30mA 6-Pin TSOT-23 T/R 买入
REG71055DDCTG4 Texas Instruments Charge Pump Charge Pump STPUP/STPDN 5.5V 30mA 6-Pin TSOT-23 T/R 买入
REG710NA-5/3K Texas Instruments Charge Pump Charge Pump STPUP/STPDN 5V 30mA 6-Pin SOT-23 T/R 买入
REG710NA-2.5/250 Texas Instruments Charge Pump Charge Pump STPUP/STPDN 2.5V 30mA 6-Pin SOT-23 T/R 买入
加载更多
