TPS53015EVM-126, Evaluation Board using TPS53015 Single Synchronous Step-Down Controller for Low-Voltage Power Rails
使用 Texas Instruments 的 TPS53015DGS 的参考设计
1 / 1
依据最终产品
- DVD Player/Recorder
- Game Console
- Networking Home Terminal
- Power Supplies
- Set-Top Box
说明

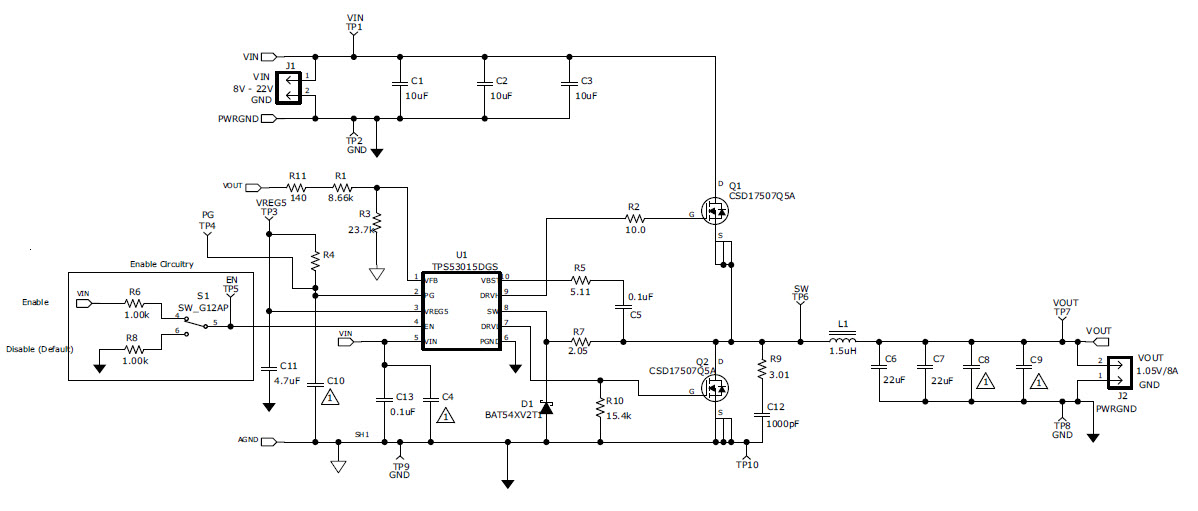

- TPS53015EVM-126, Evaluation Board provides the user with a convenient way to evaluate the TPS53015 D-CAP2 mode control in a cost sensitive application. Providing a 1.05-V output at up to 8 A from a loosely regulated 12 V (8 V 22 V) source, the TPS53015EVM-126 is designed to demonstrate the TPS53015 in a typical point-of-load application while providing a number of test points to evaluate the performance of the TPS53015
主要特色
-
Conversion TypeDC to DC
-
Input Voltage8 to 22 V
-
Output Voltage1.05 V
-
Output Current8 A
-
Efficiency86.5 %
-
TopologyBuck
Featured Parts (1)
| 零件编号 | 供应商 | 类别 | 说明 | |||
|---|---|---|---|---|---|---|
|
TPS53015DGSR | Texas Instruments | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Down 500kHz 10-Pin VSSOP T/R | 买入 | |
