TIPD147, Noise Measurement Post-Amp for Oscilloscope or Spectrum Analyzer
使用 Texas Instruments 的 OPA376A 的参考设计
1 / 1
依据最终产品
- Audio
- Oscilloscope
- Portable Medical Instrumentation
- Test Equipment
说明

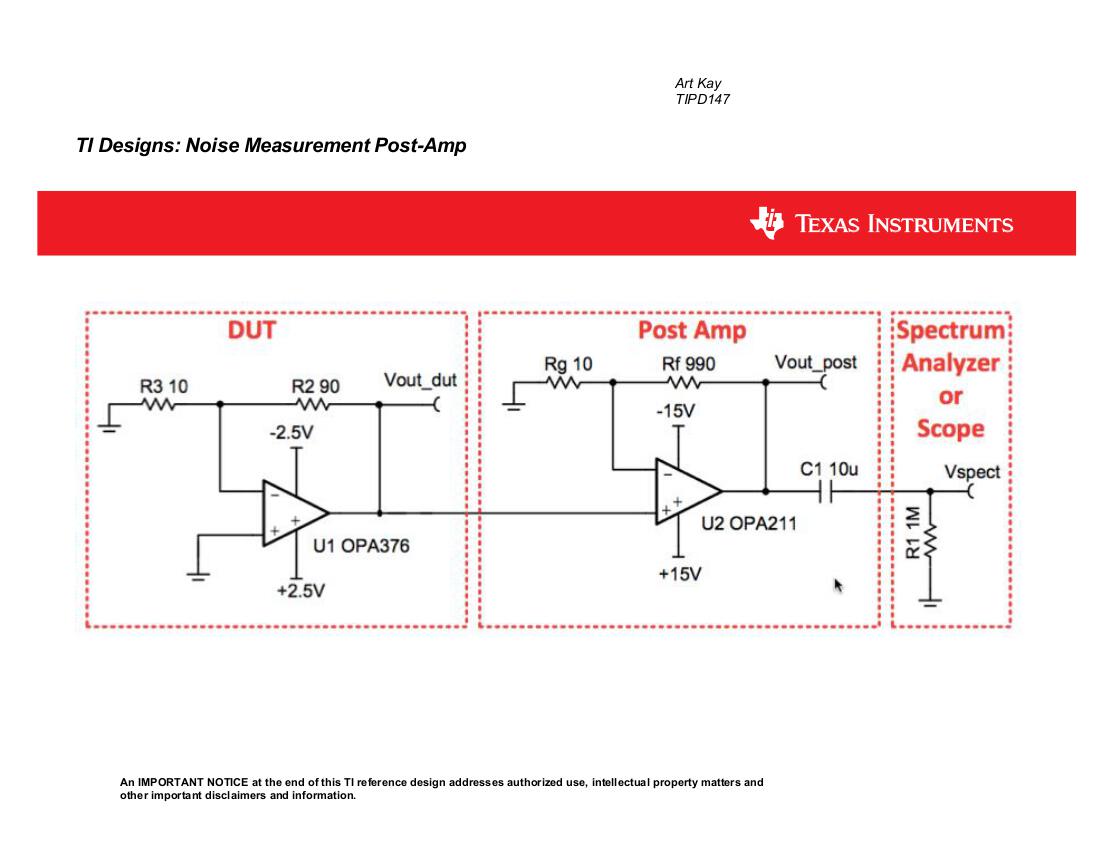

- TIPD147, Noise Measurement Post-Amp for Oscilloscope or Spectrum Analyzer. In some cases a scope or spectrum analyzer does not have the range required to measure very small noise levels. This noise measurement post-amp boosts the output noise of the device under test (DUT) to allow for measurement with standard test equipment. The key requirements of this circuit is that it has a low noise floor and sufficient bandwidth for characterization of most devices
