TIDC-WL1837MODCOM8I, 2.4/5 GHz Dual Band Wi-Fi + Bluetooth Certified Antenna Design on WiLink 1837 Module
使用 Texas Instruments 的 WL1837MODGIMOC 的参考设计
1 / 2
相关文件
- WiLink 8 Dual Band 2.4 & 5 GHz Wi-Fi + Bluetooth COM8 EVM PCB Layout
- WiLink 8 Dual Band 2.4 & 5 GHz Wi-Fi + Bluetooth COM8 EVM Bill of Materials
- WiLink 8 Dual Band 2.4 & 5 GHz Wi-Fi + Bluetooth COM8 EVM Gerber Files
- WiLink 8 Dual Band 2.4 & 5 GHz Wi-Fi + Bluetooth COM8 EVM CAD Files
- WiLink 8 Dual Band 2.4 & 5 GHz Wi-Fi + Bluetooth COM8 EVM PCB .asc Layout

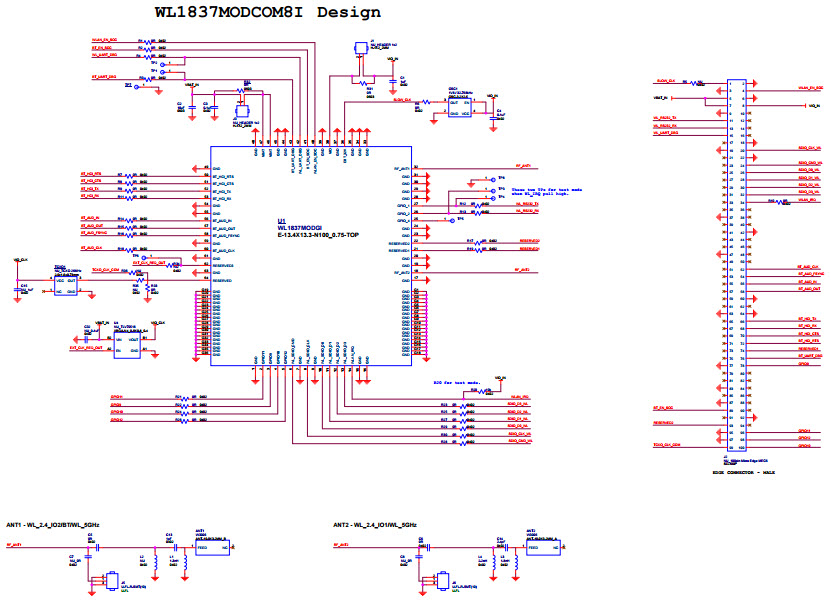

- WiLink 8 Dual Band 2.4 & 5 GHz Wi-Fi + Bluetooth COM8 EVM Schematic
依据最终产品
- Internet Radio Player
说明

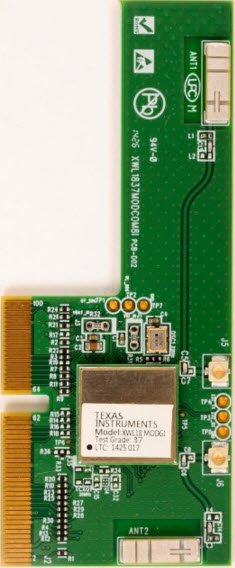

- TIDC-WL1837MODCOM8I, 2.4/5 GHz Dual Band Wi-Fi + Bluetooth Certified Antenna Design on WiLink 1837 Module. The WiLink 1837 module antenna design is a reference design that combines the functionalities of the WiLink 8 module with a built-in antenna on a single board, implementing the module in the way it's been certified. Through this, customers are able to evaluate the performance of the module through embedded applications such as home automation and the Internet of Things that make use of both embedded Wi-Fi and Bluetooth/Bluetooth low energy functionalities found on the WiLink 1837 module
主要特色
-
Operating Frequency2400 MHz
Featured Parts (3)
| 零件编号 | 供应商 | 类别 | 说明 | |||
|---|---|---|---|---|---|---|
|
WL1837MODGIMOCR | Texas Instruments | Combo Wireless Modules | WLAN+BT Module 2412MHz to 2484MHz/4910MHz to 5825MHz 100-Pin SMD Module T/R | 买入 | |
|
|
WL1837MODGIMOCT | Texas Instruments | Combo Wireless Modules | WLAN+BT Module 2412MHz to 2484MHz/4910MHz to 5825MHz 100-Pin SMD Module T/R | 买入 | |
|
|
WL1837MODGIMOCR-936994701 | Texas Instruments | Combo Wireless Modules | WLAN+BT Module 2412MHz to 2484MHz/4910MHz to 5825MHz 100-Pin SMD Module T/R | 买入 | |
