TIDA-00306, Media Converter - RJ45 to Fiber Converter
使用 Texas Instruments 的 DP83849IDVS 的参考设计
1 / 9
说明

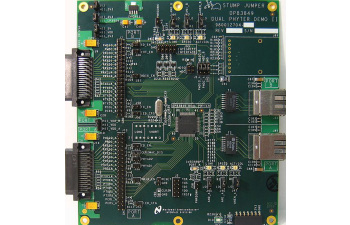

- TIDA-00306, Media Converter - RJ45 to Fiber Converter. This reference design details a methodology to use the DP83849 evaluation board to implement a 10/100BASE-TX to 10/100BASE-FX media converter, which enables copper based legacy equipment to be easily connected to a fiber network. Copper based Ethernet (10/100BASE-TX) has been widely used in grid local area networks, but with limited communication distance. Fiber optic networking has been well established and has continuous cost reductions
Featured Parts (2)
| 零件编号 | 供应商 | 类别 | 说明 | |||
|---|---|---|---|---|---|---|
|
LP3964EMP-3.3/NOPB | Texas Instruments | Linear Regulators | LDO Regulator Pos 3.3V 0.8A 5-Pin(4+Tab) SOT-223 T/R | 买入 | |
|
|
LP3964EMP-3.3/NOPB | Texas Instruments | Linear Regulators | LDO Regulator Pos 3.3V 0.8A 5-Pin(4+Tab) SOT-223 T/R | 买入 | |
