Power Meter for Industrial
使用 Analog Devices 的 71M6511H-IGT 的参考设计
1 / 3
依据最终产品
- Industrial
说明

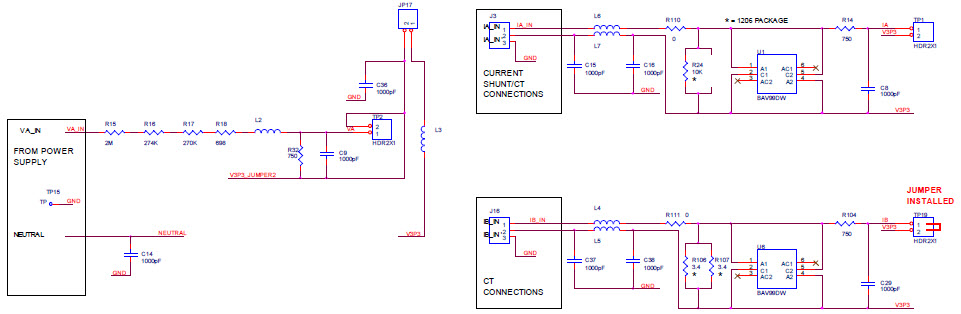

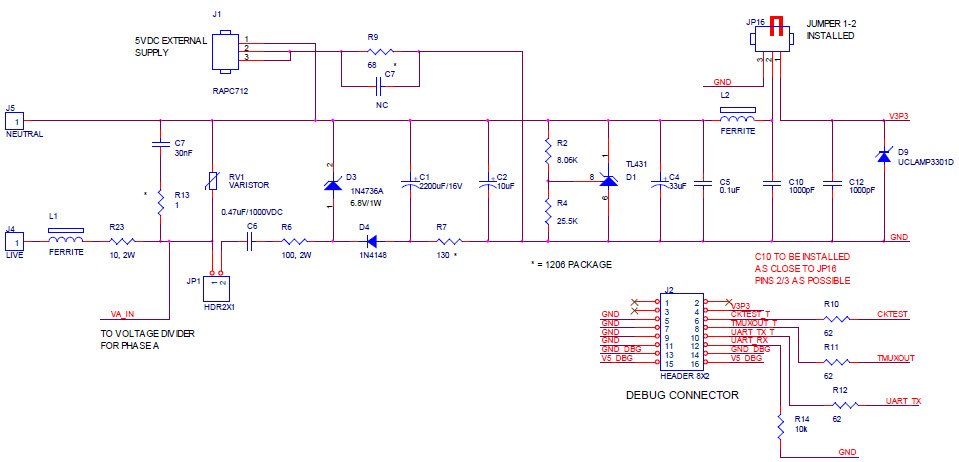

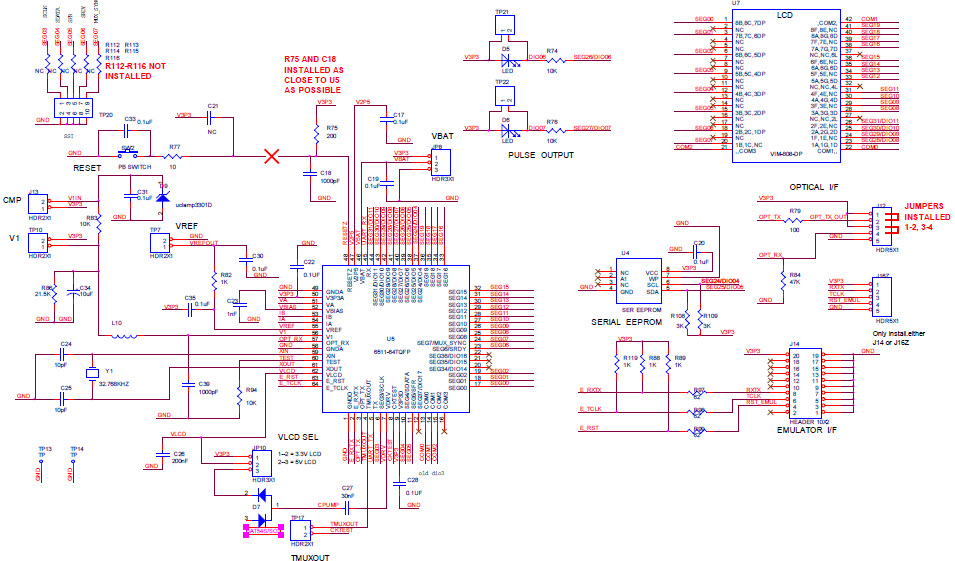

- EMI/EMC Compliant Meter Design with the 71M6511.A meter design based on a 2-layer PCB that passes EMI/EMC tests, Such as radiated and conducted emissions, Radiated susceptibility, as well as EFT is presented in this application
Featured Parts (2)
| 零件编号 | 供应商 | 类别 | 说明 | |||
|---|---|---|---|---|---|---|
|
TL431AIDR | Texas Instruments | Voltage References | V-Ref Adjustable 2.495V to 36V 100mA 8-Pin SOIC T/R | 买入 | |
|
ECS-.327-12.5-17-TR | ECS, Inc. International | Crystals | Crystal 0.032768MHz ±20ppm (Tol) 12.5pF FUND 50000Ohm 4-Pin SMD T/R | 买入 | |
