PMP6014, Reference Design using TPS92074, 120Vac Non Dimmable 8W LED Driver

使用 Texas Instruments 的 TPS92074DDC 的参考设计

放大
Image 1 / 1

供应商

Texas Instruments
  • 应用类别
    照明
  • 产品类别
    调光发光二极管驱动器

相关文件

依据最终产品

  • Displays
  • LED Lighting

说明

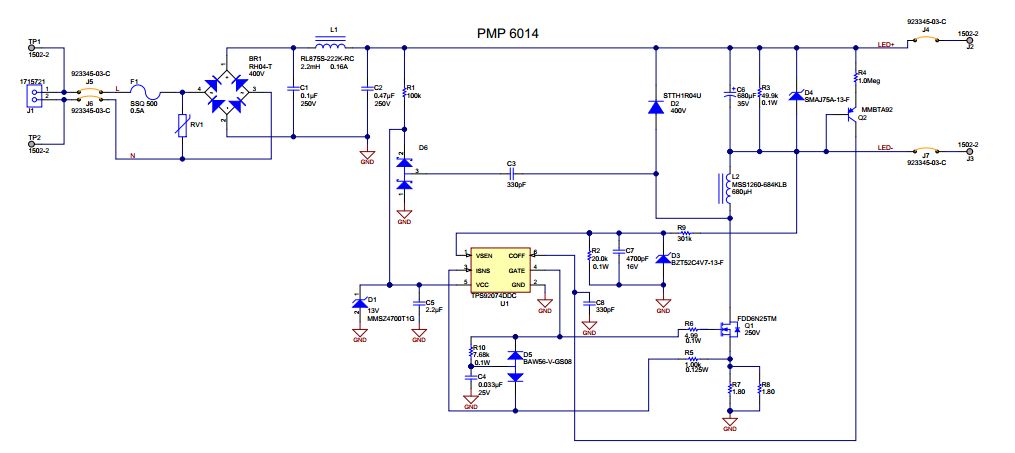

  • PMP6014, This reference design provides a high-brightness LED driver based on the TPS92074. It is designed to operate with an input voltage in the range of 90VAC to 132VAC with a 120 VAC nominal input voltage. This design is set up for a 250mA output current with an output voltage range of 25 V to 35 V

主要特色

  • Input Voltage
    90 to 132 (AC) V
  • Output Voltage
    25 to 35 V
  • Output Current
    0.25 A
  • Output Power
    8 W

Featured Parts (2)

Featured Parts
零件编号 供应商 类别 说明
TPS92074DDCR Texas Instruments LED Drivers LED Driver 12V/15V 6-Pin TSOT-23 T/R 买入
TPS92074DDCT Texas Instruments LED Drivers LED Driver 12V/15V 6-Pin TSOT-23 T/R 买入
