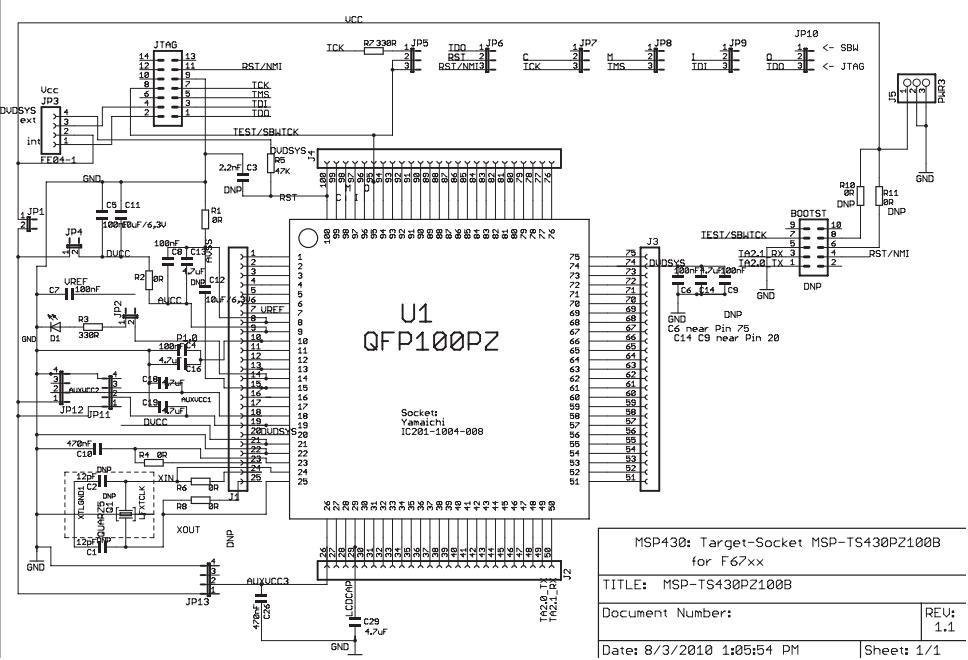

MSP-TS430PZ100B, Evaluation Board for the MSP430F6733 Microcontroller 100-Pin Target board
使用 Texas Instruments 的 MSP430F6733IPZ 的参考设计
1 / 2
依据最终产品
- Electrocardiograph Battery Powered
- Measurement Instruments
- Medical and Healthcare
- Military and Aerospace
- Missile Defense
- Portable
说明
- MSP-TS430PZ100B, Evaluation Board for the MSP430F6733 Microcontroller 100-Pin Target board. The MSP-TS430PZ100B, is a Standalone 100-pin ZIF socket target board used to program and debug the MSP430 in-system through the JTAG interface or the Spy Bi-Wire (2-wire JTAG) protocol. The development board supports all MSP430F643x and MSP430F533x Flash parts in a 100-pin QFP package
主要特色
-
Embedded System TypeMCU
-
Family NameMSP430
-
PlatformLaunchPad
Featured Parts (1)
| 零件编号 | 供应商 | 类别 | 说明 | |||
|---|---|---|---|---|---|---|
|
MSP430F6733IPZ | Texas Instruments | Microcontrollers - MCUs | MCU 16-bit MSP430 RISC 64KB Flash 2.5V/3.3V 100-Pin LQFP Tray | 买入 | |
