LTC1736 Current Mode Control Example Without AVP
使用 Analog Devices 的 LTC1736 的参考设计
1 / 1
依据最终产品
- Laptop
- Notebook
- Processor Power Management
说明

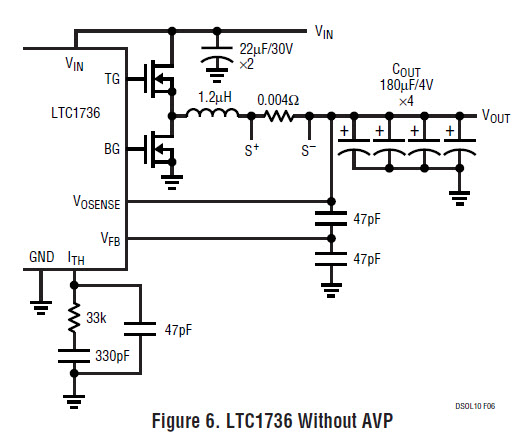

- Circuit shows LTC1736 basic power stage and feedback compensation circuit, with 20V input and 1.6V output
主要特色
-
Conversion TypeDC to DC
-
Input Voltage20 V
-
Output Voltage1.6 V
-
TopologyBuck
Featured Parts (5)
| 零件编号 | 供应商 | 类别 | 说明 | |||
|---|---|---|---|---|---|---|
|
LTC1736CG | Analog Devices | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Down 500kHz 24-Pin SSOP | 买入 | |
|
|
LTC1736CG#PBF | Analog Devices | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Down 500kHz 24-Pin SSOP Tube | 买入 | |
|
|
LTC1736IG#PBF | Analog Devices | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Down 500kHz 24-Pin SSOP Tube | 买入 | |
|
|
LTC1736CG#TRPBF | Analog Devices | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Down 500kHz 24-Pin SSOP T/R | 买入 | |
|
|
LTC1736IG#TRPBF | Analog Devices | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Down 500kHz 24-Pin SSOP T/R | 买入 | |
