LT1425, Fully Isolated 5V, 220mA Supply
使用 Analog Devices 的 LT1425 的参考设计
1 / 1
依据最终产品
- PCMCIA Card
- Power Over Ethernet
- Telecom Power Supply
说明

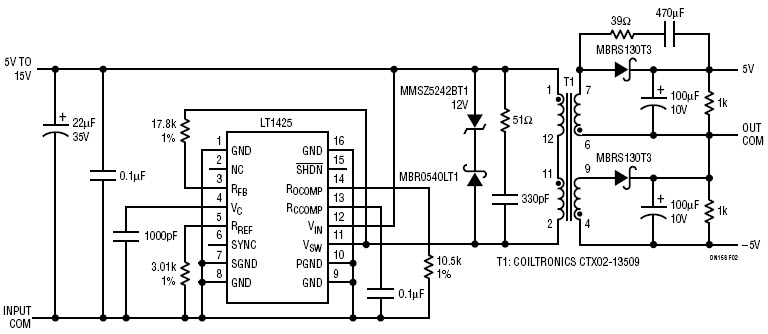

- Circuit shows LT1425, Circuit shows a 5V supply with 1.5kV of isolation. The sum of line/load/cross regulation is better than 3%. Full load efficiency is between 72% (VIN = 5V) and 80% (VIN = 15V)
主要特色
-
Conversion TypeDC to DC
-
Input Voltage5 to 15 V
-
Output Voltage-5|5 V
-
Output Current-0.22@-5V|0.22@5V A
-
Efficiency80 %
-
TopologyFlyback
