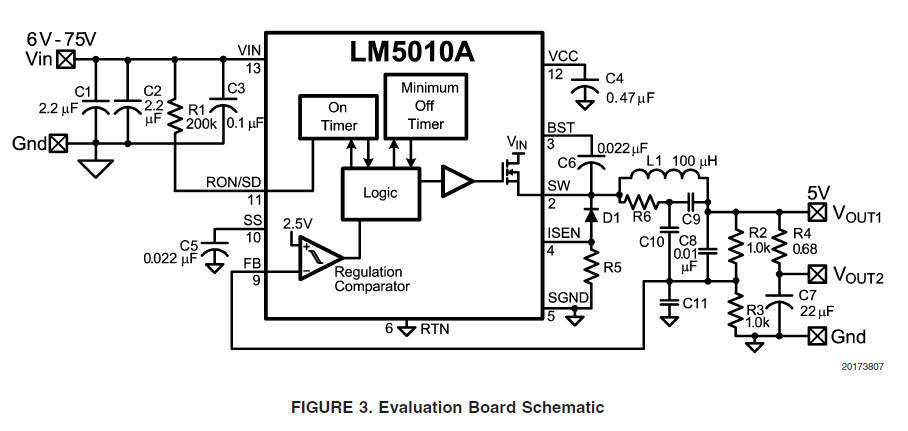

LM5010AEVAL/NOPB, Evaluation Board using LM5010A provides design engineer with a fully functional buck regulator
使用 Texas Instruments 的 LM5010AMH 的参考设计
1 / 1
相关文件
依据最终产品
- Automotive and Transportation
- Telecom Power Supply
说明
- LM5010AEVAL/NOPB, Evaluation Board using LM5010A provides design engineer with a fully functional buck regulator, employing constant on-time (COT) operating principle, 5V DC to DC Multi-Output Power Supply for Automotive
主要特色
-
Conversion TypeDC to DC
-
Input Voltage6 to 75 V
-
Output Voltage5|5 V
-
Output Current0 to 1@5V A
-
Efficiency94.75 %
-
TopologyBuck
Featured Parts (6)
| 零件编号 | 供应商 | 类别 | 说明 | |||
|---|---|---|---|---|---|---|
|
LM5010AMHE/NOPB | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 6V to 75V Step Down Single-Out 2.5V to 70V 1A 14-Pin HTSSOP EP T/R | 买入 | |
|
|
LM5010AMH/NOPB | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 6V to 75V Step Down Single-Out 2.5V to 70V 1A 14-Pin HTSSOP EP Tube | 买入 | |
|
|
LM5010AMHX/NOPB | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 6V to 75V Step Down Single-Out 2.5V to 70V 1A 14-Pin HTSSOP EP T/R | 买入 | |
|
|
LM5010AMHX/NOPB | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 6V to 75V Step Down Single-Out 2.5V to 70V 1A 14-Pin HTSSOP EP T/R | 买入 | |
|
|
LM5010AMH/NOPB | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 6V to 75V Step Down Single-Out 2.5V to 70V 1A 14-Pin HTSSOP EP Tube | 买入 | |
|
|
LM5010AMHE/NOPB | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 6V to 75V Step Down Single-Out 2.5V to 70V 1A 14-Pin HTSSOP EP T/R | 买入 | |
