LM3401 MR16 Reference Designs for Non-Dimming and Dimming LED Applications
使用 Texas Instruments 的 LM3401MM 的参考设计
1 / 2
依据最终产品
- Battery Charger
- LED Bulb
说明

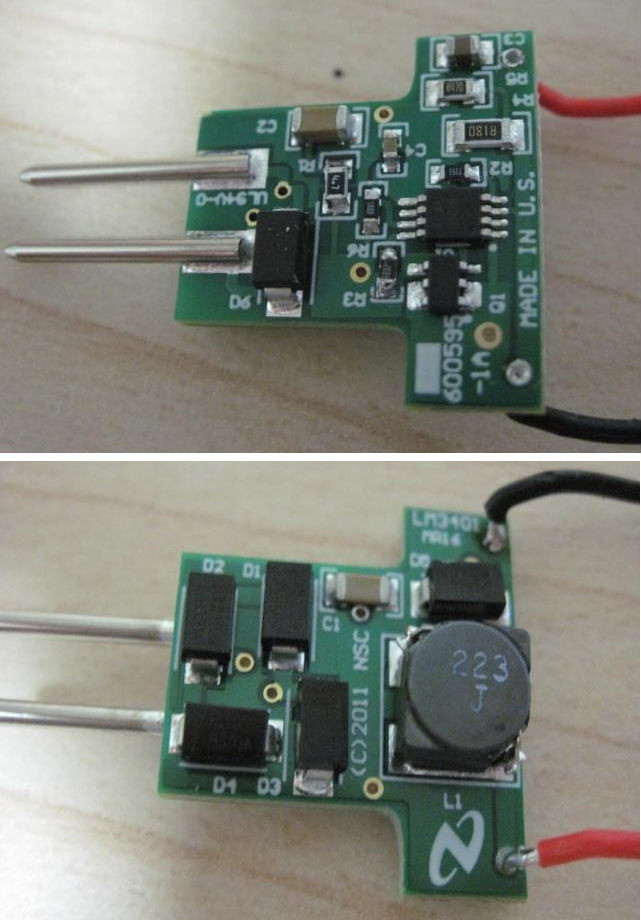

- LM3401-MR16DEMO, design was developed to minimize the current spikes coming out of an electronic transformer to less than 5A, which is a typical transformer rating, when driving an LED MR16 circuit. The off the shelf LED MR16 solutions exhibit spikes that significantly exceed a transformers maximum rated output current which will degrade the reliability of the transformer and reduce its operating lifetime
主要特色
-
Input Voltage12 V
-
Output Voltage6 V
-
Output Current1 A
-
Output Power6.23 W
-
Number of Derived Elements2
Featured Parts (4)
| 零件编号 | 供应商 | 类别 | 说明 | |||
|---|---|---|---|---|---|---|
|
LM3401MM/NOPB | Texas Instruments | LED Drivers | LED Driver 1 Segment 8-Pin VSSOP T/R | 买入 | |
|
|
LM3401MM/NOPB | Texas Instruments | LED Drivers | LED Driver 1 Segment 8-Pin VSSOP T/R | 买入 | |
|
|
LM3401MMX/NOPB | Texas Instruments | LED Drivers | LED Driver 1 Segment 8-Pin VSSOP T/R | 买入 | |
|
|
LM3401MMX/NOPB | Texas Instruments | LED Drivers | LED Driver 1 Segment 8-Pin VSSOP T/R | 买入 | |
