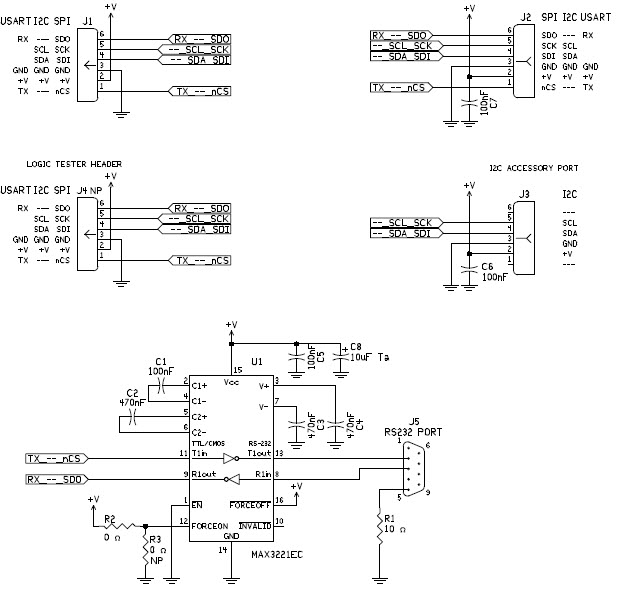

DS70649A, RS232 Serial Accessory Demo Board

使用 Microchip Technology 的 MAX3221ECAE 的参考设计

放大
Image 1 / 1

供应商

Microchip Technology
  • 应用类别
    界面
  • 产品类别
    RS-232接口

依据最终产品

  • Industrial

说明

  • DS70649A, RS232 Serial Accessory Demo Board. The RS232 Serial Accessory Board is a demonstration and development daughter board that is used with PIC18 Wireless Development Board or with any other development boards that have compatible interface

主要特色

  • Interface Standards
    RS-232
  • Data Rate
    0.25 Mbps
  • Supply Voltage
    Single(3 to 5) V
  • Functions
    Line Transceiver

Featured Parts (4)

Featured Parts
零件编号 供应商 类别 说明
MAX3221ECAE+ Analog Devices Bus Line Transceivers Single Transmitter/Receiver RS-232 16-Pin SSOP Tube 买入
MAX3221ECAE+T Analog Devices Bus Line Transceivers Single Transmitter/Receiver RS-232 16-Pin SSOP T/R 买入
MAX3221ECAE+T Analog Devices Bus Line Transceivers Single Transmitter/Receiver RS-232 16-Pin SSOP T/R 买入
MAX3221ECAE+ Analog Devices Bus Line Transceivers Single Transmitter/Receiver RS-232 16-Pin SSOP Tube 买入
