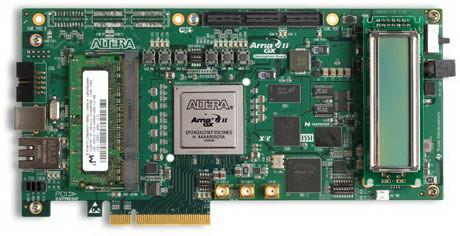

DK-DEV-2AGX125NES, Arria II GX FPGA Development Board provides a hardware platform for developing and prototyping low-power
使用 Intel 的 EP2AGX125EF35C4N 的参考设计
1 / 30
相关文件
依据最终产品
- Data Storage Devices
- Embedded PC
- Video and Imaging
说明
- DK-DEV-2AGX125NES, Arria II GX FPGA Development Board provides a hardware platform for developing and prototyping low-power, high-performance and logic-intensive designs. The board provides a wide range of peripherals and memory interfaces to facilitate the development of the Arria II GX FPGA designs
主要特色
-
Embedded System TypeFPGA
-
Family NameArria II
Featured Parts (42)
| 零件编号 | 供应商 | 类别 | 说明 | |||
|---|---|---|---|---|---|---|
|
TS5A2053DCTRE4 | Texas Instruments | Analog Switch Multiplexers | Analog Switch Single SPDT 8-Pin SSOP T/R | 买入 | |
|
CDCM61001RHBR/2801 | Texas Instruments | Clock Generators and Synthesizers | Clock Generator 21.875MHz to 28.47MHz-IN 683.264MHz-OUT 32-Pin VQFN EP T/R | 买入 | |
|
IS61VPS51236A-200B3I | Integrated Silicon Solution Inc | SRAM Chip | SRAM Chip Sync Quad 2.5V 18M-bit 512K x 36 3.1ns 165-Pin BGA | 买入 | |
|
TPS40061PWPRG4 | Texas Instruments | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Down 1000kHz 16-Pin HTSSOP EP T/R | 买入 | |
|
LTC2418CGN#PBF | Analog Devices | Analog to Digital Converters - ADCs | 16-Channel Single ADC Delta-Sigma 7.5sps 24-bit Serial 28-Pin SSOP N Tube | 买入 | |
|
MAX3378EEUD+ | Analog Devices | Level Translators | Voltage Level Translator 4-CH Bidirectional 14-Pin TSSOP Tube | 买入 | |
|
|
TS5A2053DCTR | Texas Instruments | Analog Switch Multiplexers | Analog Switch Single SPDT 8-Pin SSOP T/R | 买入 | |
|
TPS71501DCKR-824922501 | Texas Instruments | Linear Regulators | LDO Regulator Pos 1.205V to 15V 0.05A 5-Pin SC-70 T/R | 买入 | |
|
TPS51200DRCR | Texas Instruments | Special Purpose Voltage Regulators | DDR Memory Termination Regulator 2.375V to 3.5V 10-Pin VSON EP T/R | 买入 | |
|
|
TPS40061PWP | Texas Instruments | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Down 1000kHz 16-Pin HTSSOP EP Tube | 买入 | |
|
|
MAX3378EEUD+T | Analog Devices | Level Translators | Voltage Level Translator 4-CH Bidirectional 14-Pin TSSOP T/R | 买入 | |
|
93LC46B-I/SN | Microchip Technology | EEPROM | EEPROM Serial-Microwire 1K-bit 64 x 16 3.3V/5V 8-Pin SOIC N Tube | 买入 | |
