DAC8574, is a quad channel, low power, 16-bit voltage buffered output DAC
使用 Texas Instruments 的 DAC8574 的参考设计
1 / 1
依据最终产品
- Computers and Peripherals
- Data Acquisition System
- Industrial Process Measurement and Control
- Motion Motor Control
- Portable
说明

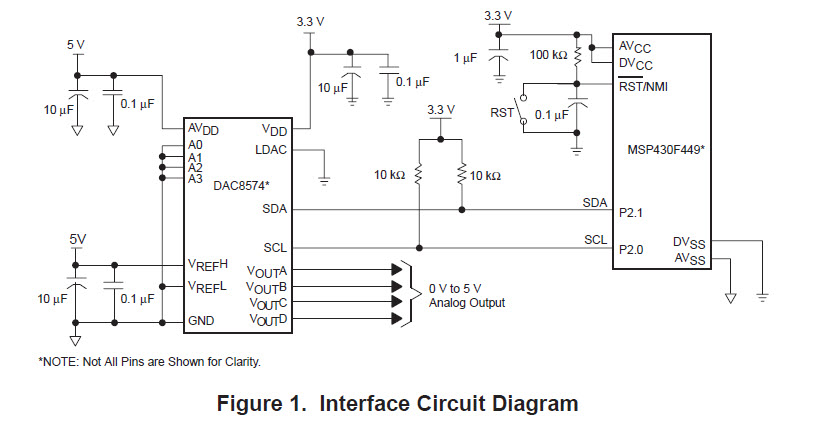

- DAC8574, is a quad channel, low power, 16-bit voltage buffered output DAC which features an I2C two wire serial interface with triple buffering
主要特色
-
DAC Resolution16 Bit
-
DAC Sampling Rate5.3K SPS
-
Number of Channels4CH
Featured Parts (5)
| 零件编号 | 供应商 | 类别 | 说明 | |||
|---|---|---|---|---|---|---|
|
MSP430F449IPZR | Texas Instruments | Microcontrollers - MCUs | MCU 16-bit MSP430 RISC 60KB Flash 2.5V/3.3V 100-Pin LQFP T/R | 买入 | |
|
|
MSP430F449IPZ | Texas Instruments | Microcontrollers - MCUs | MCU 16-bit MSP430 RISC 60KB Flash 2.5V/3.3V 100-Pin LQFP Tray | 买入 | |
|
DAC8574IPWG4 | Texas Instruments | Digital to Analog Converters - DACs | DAC 4-CH Resistor-String 16-bit 16-Pin TSSOP Tube | 买入 | |
|
|
DAC8574IPW | Texas Instruments | Digital to Analog Converters - DACs | DAC 4-CH Resistor-String 16-bit 16-Pin TSSOP Tube | 买入 | |
|
|
DAC8574IPWR | Texas Instruments | Digital to Analog Converters - DACs | DAC 4-CH Resistor-String 16-bit 16-Pin TSSOP T/R | 买入 | |
