DAC8534, is a quad-channel, low-power, 16-bit, serial digital-to-analog converter
使用 Texas Instruments 的 DAC8534 的参考设计
1 / 1
相关文件
依据最终产品
- Computers and Peripherals
- Data Acquisition System
- Industrial Process Measurement and Control
- Motion Motor Control
- Portable
说明

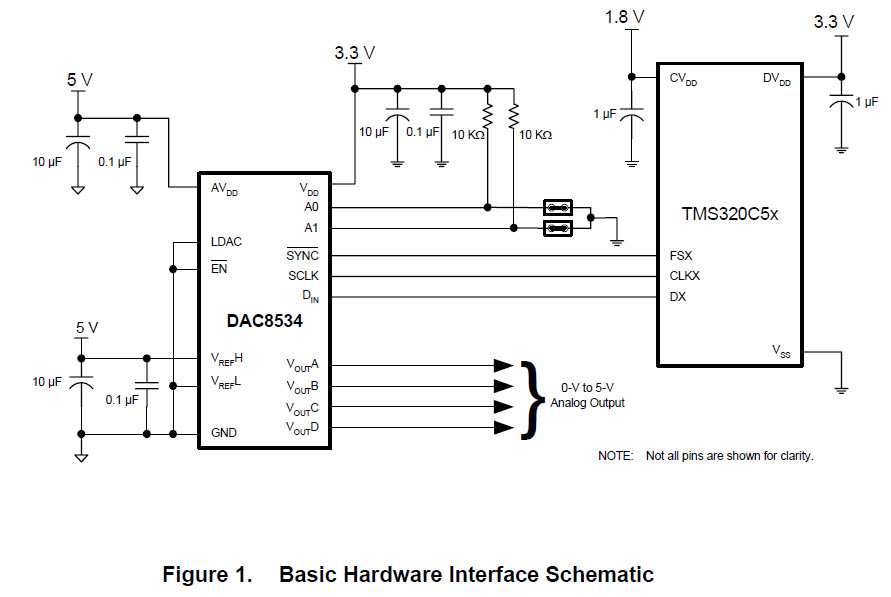

- DAC8534, is a quad-channel, low-power, 16-bit, serial digital-to-analog converter. This application report describes a method for interfacing DAC8534 to TMS320C5x-series DSKs using McBSP1 and 5-6K Interface Board
主要特色
-
DAC Resolution16 Bit
-
DAC Sampling Rate93K SPS
-
Number of Channels4CH
Featured Parts (4)
| 零件编号 | 供应商 | 类别 | 说明 | |||
|---|---|---|---|---|---|---|
|
DAC8534IPWR | Texas Instruments | Digital to Analog Converters - DACs | DAC 4-CH Resistor-String 16-bit 16-Pin TSSOP T/R | 买入 | |
|
|
DAC8534IPW | Texas Instruments | Digital to Analog Converters - DACs | DAC 4-CH Resistor-String 16-bit 16-Pin TSSOP Tube | 买入 | |
|
|
DAC8534IPWG4 | Texas Instruments | Digital to Analog Converters - DACs | DAC 4-CH Resistor-String 16-bit 16-Pin TSSOP Tube | 买入 | |
|
|
DAC8534IPWRG4 | Texas Instruments | Digital to Analog Converters - DACs | DAC 4-CH Resistor-String 16-bit 16-Pin TSSOP T/R | 买入 | |
