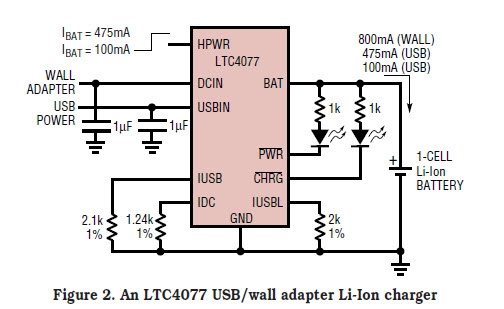

An LTC4077 USB/wall adapter Li-Ion charger
使用 Analog Devices 的 LTC4077 的参考设计
1 / 1
依据最终产品
- Cellular Phone
- Digital Camera
- Personal Digital Assistant
说明
- An LTC4077 USB/wall adapter Li-Ion charger. LTC4077 lithium-ion battery chargers are specifically designed to detect power at the inputs and automatically select the appropriate source for charging
主要特色
-
Battery TypeLithium-Ion
-
Output Voltage4.1 V
-
Number of Battery Cells1
Featured Parts (2)
| 零件编号 | 供应商 | 类别 | 说明 | |||
|---|---|---|---|---|---|---|
|
LTC4077EDD#PBF | Analog Devices | Battery Management ICs | Linear Battery Charger Li-Ion/Li-Pol 950mA 4.2V 10-Pin DFN EP Tube | 买入 | |
|
|
LTC4077EDD#TRPBF | Analog Devices | Battery Management ICs | Linear Battery Charger Li-Ion/Li-Pol 950mA 4.2V 10-Pin DFN EP T/R | 买入 | |
