5V Analog Amplification for Portable

使用 Analog Devices 的 MAX4380 的参考设计

放大
Image 1 / 1

供应商

Analog Devices
  • 应用类别
    放大器和比较器
  • 产品类别
    模拟放大

依据最终产品

  • Portable

说明

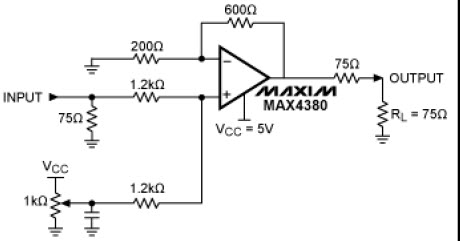

  • Single supply circuitry saves space and cost, but audio and video are usually referenced to ground, which requires two op amps and a negative rail. This circuit however, Uses only one op amp (MAX4380) to level-shift a ground-referenced signal while operating on a single supply voltage

主要特色

  • Number of Supplies
    Single
  • Supply Voltage
    5 V

Featured Parts (6)

Featured Parts
零件编号 供应商 类别 说明
MAX4380EXT+T Analog Devices Operational Amplifiers - Op Amps Op Amp Single High Speed Amplifier R-R O/P ±5.5V/11V 6-Pin SC-70 T/R 买入
MAX4380EXT+T Analog Devices Operational Amplifiers - Op Amps Op Amp Single High Speed Amplifier R-R O/P ±5.5V/11V 6-Pin SC-70 T/R 买入
MAX4380EUT+T Analog Devices Operational Amplifiers - Op Amps Op Amp Single High Speed Amplifier R-R O/P ±5.5V/11V 6-Pin SOT-23 T/R 买入
MAX4380EXT+ Analog Devices Operational Amplifiers - Op Amps Op Amp Single High Speed Amplifier R-R O/P ±5.5V/11V 6-Pin SC-70 T/R 买入
MAX4380EXT+ Analog Devices Operational Amplifiers - Op Amps Op Amp Single High Speed Amplifier R-R O/P ±5.5V/11V 6-Pin SC-70 T/R 买入
MAX4380EUT+T Analog Devices Operational Amplifiers - Op Amps Op Amp Single High Speed Amplifier R-R O/P ±5.5V/11V 6-Pin SOT-23 T/R 买入
