16-Bit, 100KSPS, 4CH DAC for Data Acquisition System
使用 Texas Instruments 的 DAC7654 的参考设计
1 / 1
依据最终产品
- Data Acquisition System
- Industrial Process Measurement and Control
- Motion Motor Control
说明

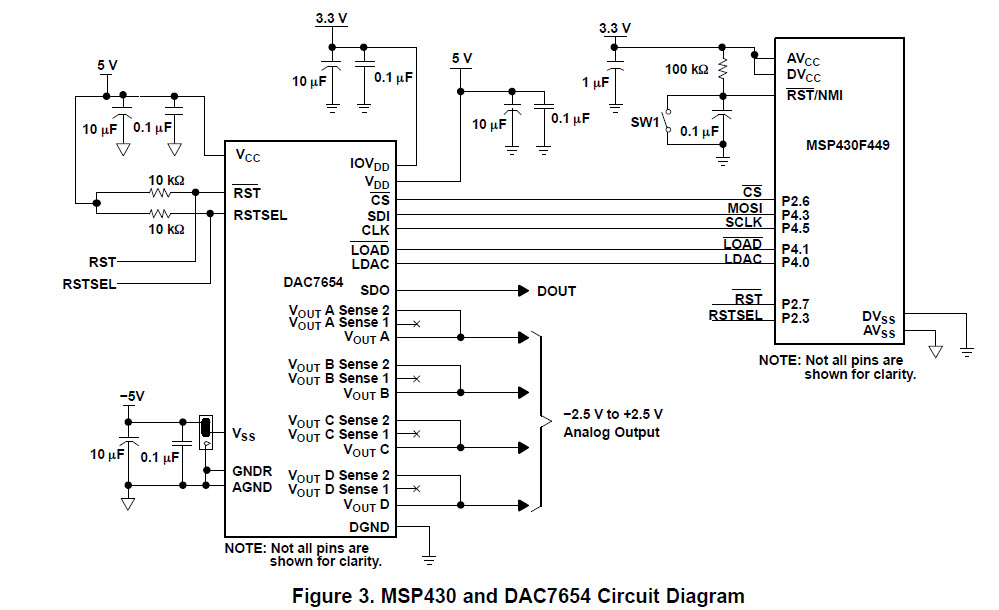

- DAC7654 digital-to-analog converter to the MSP430F449 mixed signal microcontroller using the SPI mode of serial communication
主要特色
-
DAC Resolution16 Bit
-
DAC Sampling Rate100K SPS
-
Number of Channels4CH
Featured Parts (4)
| 零件编号 | 供应商 | 类别 | 说明 | |||
|---|---|---|---|---|---|---|
|
MSP430F449IPZR | Texas Instruments | Microcontrollers - MCUs | MCU 16-bit MSP430 RISC 60KB Flash 2.5V/3.3V 100-Pin LQFP T/R | 买入 | |
|
|
MSP430F449IPZ | Texas Instruments | Microcontrollers - MCUs | MCU 16-bit MSP430 RISC 60KB Flash 2.5V/3.3V 100-Pin LQFP Tray | 买入 | |
|
DAC7654YCTG4 | Texas Instruments | Digital to Analog Converters - DACs | DAC 4-CH R-2R 16-bit 64-Pin LQFP T/R | 买入 | |
|
|
DAC7654YCT | Texas Instruments | Digital to Analog Converters - DACs | DAC 4-CH R-2R 16-bit 64-Pin LQFP T/R | 买入 | |
