Visual CommunicationsLTH3MM12VFR4500LED

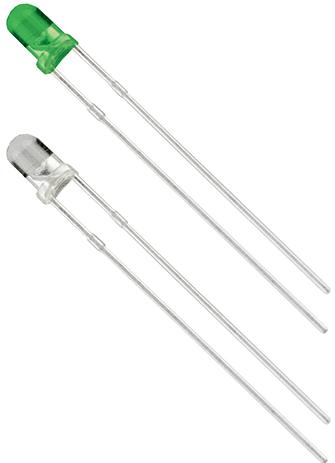

Green Through Hole 3mm LED 522nm 12 VDC Thru Hole
With standard LEDs, you always need a resistor in series to limit the current flow. But with this family of high-brightness LEDs from VCC, a built-in resistor provides 12 V operation. This means you can streamline your design by connecting the LED directly to a 12 V power supply without any additional components. These 3 or 5 mm through-hole LEDs are available in the standard red, green, blue, yellow or white colors. Their flange-lead frame style makes them perfect for display or status indication applications in boats, landscape lighting, storage servers, and the automotive industry.
| Compliant | |
| EAR99 | |
| Active | |
| 8541.41.00.00 | |
| Automotive | Unknown |
| PPAP | Unknown |
| Uni-Color | |
| Standard LED | |
| Green | |
| 1 | |
| InGaN | |
| Circular | |
| Water Clear | |
| Top Mount | |
| 5000mcd | |
| 522 | |
| 522 | |
| 30 | |
| 20 | |
| 10 | |
| 13 | |
| 5 | |
| 85 | |
| -40 | |
| 85 | |
| No | |
| Green | |
| No | |
| Yes | |
| Bag | |
| Diameter | 3.85 |
| Mounting | Through Hole |
| Package Height | 5.3 |
| PCB changed | 2 |
| Supplier Package | T-1 |
| 2 |
| EDA / CAD Models |
