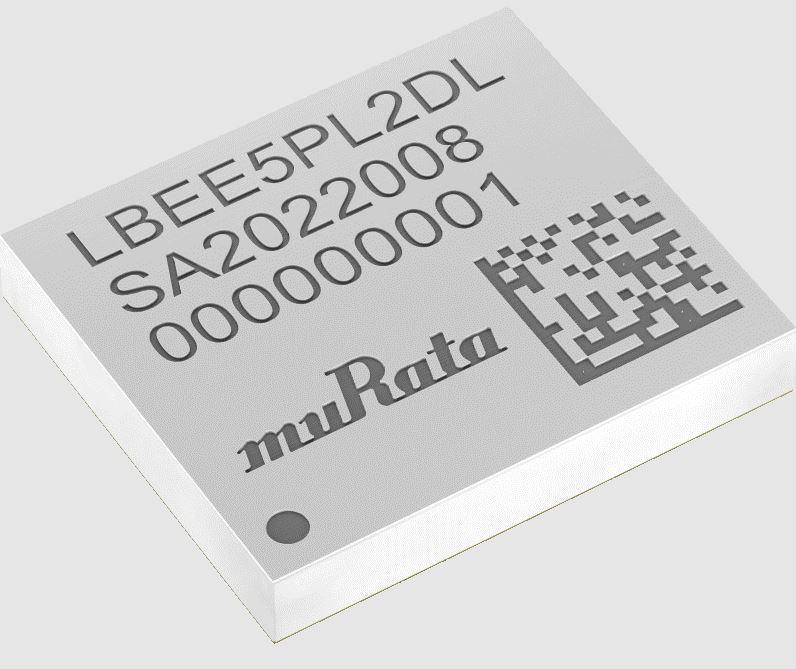

Murata ManufacturingLBEE5PL2DL-921Combo Wireless Modules

Featured Enablers

LBEE0ZZ1WE-USD-M2
LBEE0ZZ2WE-USD-M2
LBEE0ZZ2WF-USD-M2
MIMXRT1160-EVK
MIMXRT1064-EVK
8MMINILPD4-EVKB
8MNANOLPD4-EVK
EAK00329
MCIMX6UL-EVKB
MCIMX6ULL-EVK
EAK00347
EAK00360
IMXRT1050-EVKB
MIMXRT1060-EVK
MIMXRT1060-EVKB
MIMXRT1170-EVK
MIMXRT1170-EVKB
MIMXRT685-EVK
MIMXRT595-EVK
MCIMX8ULP-EVK
8MPLUSLPD4-EVK
MCIMX93-EVK

Type 2DL is a small and very high performance module based on NXP IW611 combo chipset which supports Wi-Fi® 802.11a/b/g/n/ac/ax + Bluetooth® 5.3 BR/EDR/LE up to 601Mbps PHY data rate on Wi-fi® and 2Mbps PHY data rate on Bluetooth®. The WLAN section supports SDIO v3.0 DDR50 interface and the Bluetooth® section supports high-speed 4-wire UART interface and PCM for audio data.

The IW611 implements highly sophisticated enhanced collaborative coexistence hardware mechanisms and algorithms, which ensure that WLAN, and Bluetooth® collaboration is optimized for maximum performance.

In IEEE 802.11ax mode, the WLAN operation supports rates of MCS0-MCS11 (up to 1024QAM) in 20MHz,40MHz and 80MHz channels for data rate up to 601Mbps.

Type 2DL module is packaged in an impressively small shielded form factor that facilitates integration into size- and power-sensitive applications such as IoT applications, handheld wireless system, gateway and more.

Shielded Ultra Small Wi-Fi® 11a/b/g/n/ac/ax + Bluetooth® 5.3

• •  2.4GHz & 5GHz Wi-Fi® + Bluetooth®
• •  Chipset: NXP IW611
• •  Processor: No
• •  FCC/IC "Reference" Certified

High Performance Capabilities for Internet of Things

• •  For Smart Home, Sensor Network, Audio/Video/Voice, Gateway
• •  802.11 a/b/g/n/ac/ax 1x1 601Mbps
• •  NXP i.MX Linux and Android
