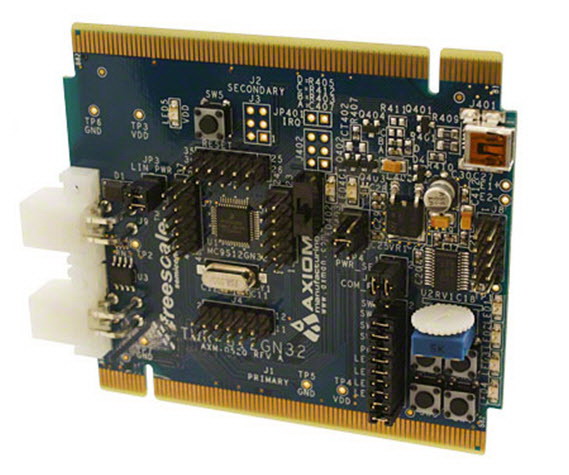

NXP SemiconductorsTWR-S12GN32Sistema integrato, schede e kit di sviluppo
MC9S12GN32 Microcontroller Tower System Module 25MHz CPU 2KB RAM 1KB/32KB EEPROM/Flash Automotive AEC-Q100
| Compliant | |
| EAR99 | |
| Preliminary | |
| 8471.50.01.50 | |
| Automotive | Yes |
| PPAP | Yes |
| Tower System Module | |
| MC9S12GN32 | |
| Microcontroller | |
| 2KB | |
| 1KB/32KB | |
| EEPROM/Flash | |
| 1 | |
| 1 | |
| 1 | |
| No | |
| No | |
| EEPROM/Flash | |
| No |
Dev Kit Description
A demonstration board for the MC9S12GN32 automotive 16-bit MCUs. An integrated open-source BDM, software tools, and examples provided with the development board make application development and debug quick and easy. All MCU signals are available on one or both edge connectors. An IO ring around the MCU also provided easy access to all signals.
The TWR-S12GN32 operates as a standalone debug tool and can also be combined and used as part of the modular Tower System development platform.
